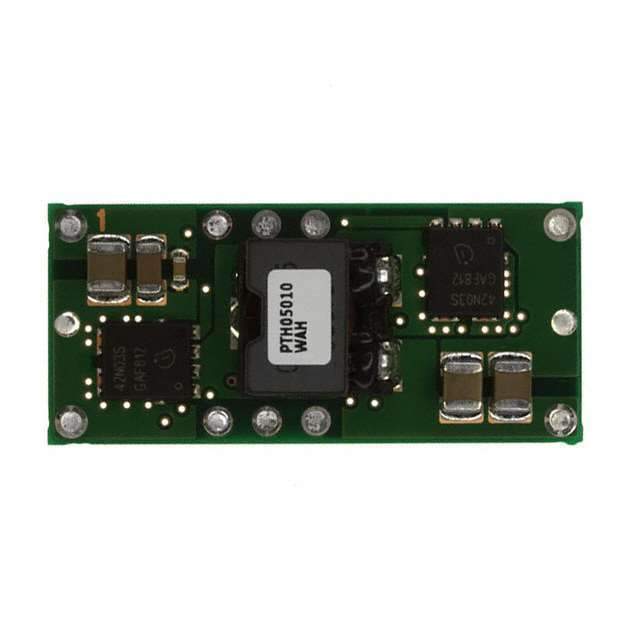

PTH05010WAH Real Image
Same model may have multiple batches, images only for reference.

PTH05010WAH

Part No PTH05010WAH
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE PIP .8-3.6V 15A T/H 10DIP
Datasheet
PTH05010WAH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTH05010W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 0.8 ~ 3.6 V
Current - Output (Max) 15A
Applications ITE (Commercial)
Mounting Style Through Hole
Package 10-DIP Module
Size / Dimension 1.37" L x 0.62" W x 0.35" H (34.8mm x 15.7mm x 8.9mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 95%
Power (Watts) - Max 54W
Win Source Part Number 026943-PTH05010WAH
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PTH05010WAH CAD Model

Description

The PTH05010WAH from Texas Instruments is a highly advanced, non-isolated power module that is part of the PTH series.

  • Input Voltage Range: 4.5V to 5.5V
  • Adjustable Output Voltage Range: 0.8V to 3.6V
  • High Efficiency: Up to 96%
  • Maximum Output Current: 6A
  • Over-Temperature Protection: Yes
  • Over-Current Protection: Yes
  • Size: 33.02 x 13.21 x 8.51 mm
  • Operating Temperature: -40°C to +85°C
