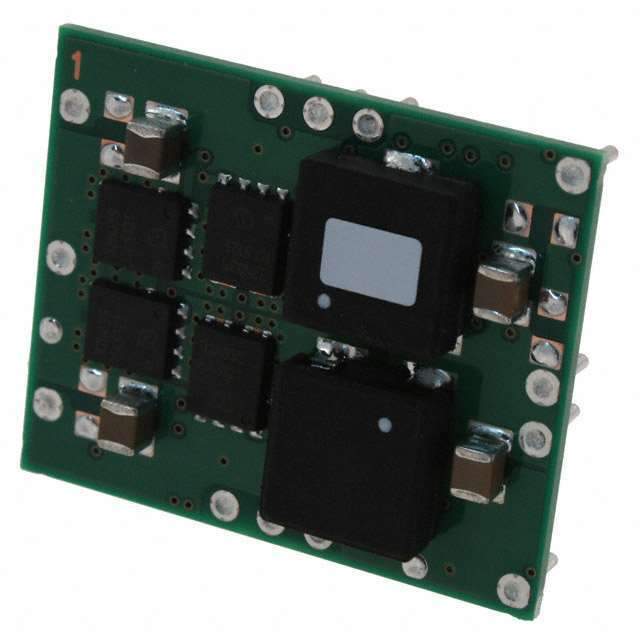

Product Overview: Texas Instruments PTH12030LAH

The PTH12030LAH is a high-performance, non-isolated module power supply manufactured by Texas Instruments. This advanced power solution is part of the PTH series, designed to meet the needs of complex digital systems that require a stable and efficient power supply. The PTH12030LAH is particularly notable for its wide-input voltage range and adjustable output voltage, making it a versatile choice for a variety of applications.

Key Features

• Wide Input Voltage Range: This module can operate with an input voltage range from 10.8V to 13.2V, accommodating varying levels of input power while maintaining a stable output.
• Adjustable Output Voltage: Users can adjust the output voltage from 0.8V to 1.8V, ensuring compatibility with a broad range of devices and allowing precise power regulation for sensitive components.
• High Efficiency: The PTH12030LAH is designed for efficiency, minimizing power loss and heat generation, which is critical for maintaining the reliability and longevity of electronic systems.
• Output Current: It can deliver a high output current of up to 30A, making it suitable for applications that demand a substantial amount of power.
• Thermal Performance: The module is engineered with excellent thermal performance in mind, featuring an integrated heat sink that dissipates heat effectively.
• Power Density: With its compact size, the PTH12030LAH offers a high power density, which is beneficial for systems where space is at a premium.
• Protection Features: It includes over-temperature protection, under-voltage lockout, and over-current protection, safeguarding the module and connected devices from various electrical anomalies.

Applications

The PTH12030LAH is ideal for use in a wide range of applications, including but not limited to telecommunications equipment, networking hardware, servers, and industrial systems. Its robust design and flexible power options make it an excellent choice for engineers and designers looking for a reliable power module to integrate into their high-performance electronic systems.

Conclusion

In summary, the Texas Instruments PTH12030LAH module power supply stands out for its adaptability, efficiency, and power handling capabilities. It is a testament to Texas Instruments' commitment to providing innovative power management solutions that cater to the evolving demands of modern technology.
