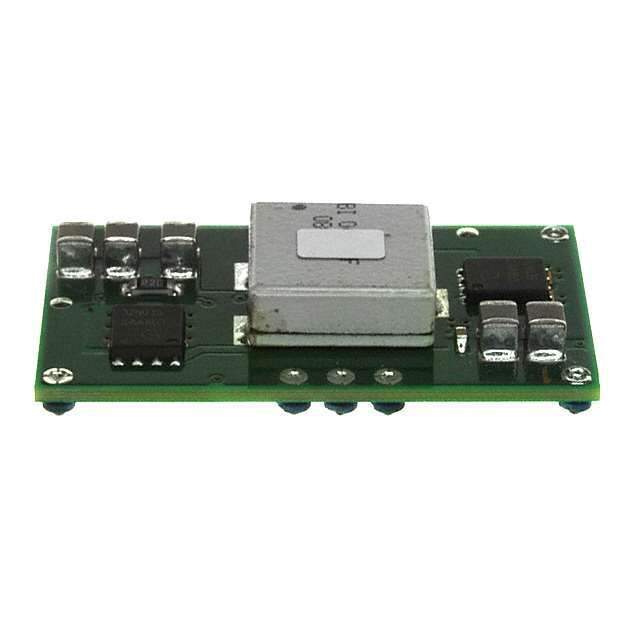

PTH03020WAS Real Image
Same model may have multiple batches, images only for reference.

PTH03020WAS

Part No PTH03020WAS
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER 0.8-2.5V 55W
Datasheet
PTH03020WAS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTH03020W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.95V
Voltage - Input (Max) 3.65V
Voltage - Output 1 0.8 ~ 2.5 V
Current - Output (Max) 22A
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Mounting Style SMD/SMT
Package 10-SMD Module
Size / Dimension 1.50" L x 0.87" W x 0.38" H (38.1mm x 22.1mm x 9.6mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 95%
Power (Watts) - Max 55W
Win Source Part Number 026932-PTH03020WAS
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTH03020WAS CAD Model

Description

The PTH03020WAS is a high-performance, 15-A rated, non-isolated power module from Texas Instruments, a leading global semiconductor company.

  • Input Voltage Range: 8V to 14V
  • Output Voltage Range: 0.9V to 5.5V (adjustable)
  • Efficiency: Up to 95% (typical)
  • Features: On/off inhibit control, output over-current and over-temperature protection
  • Package: Compact, surface-mount package
  • Compliance: RoHS compliant
  • Applications: Telecom systems, industrial systems, datacom systems
