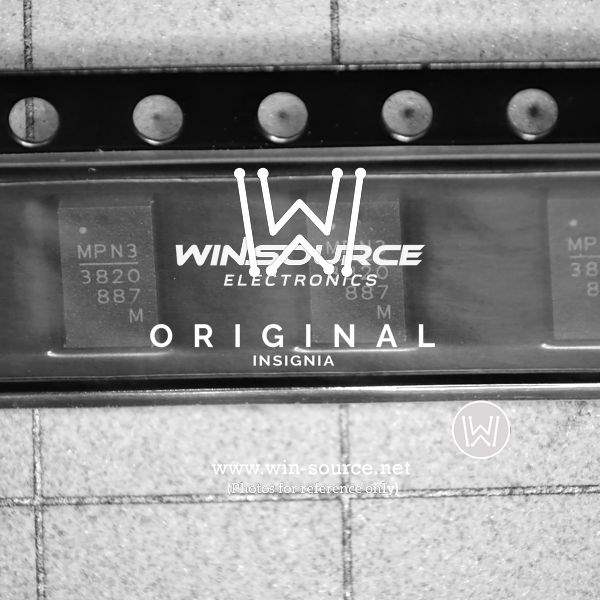

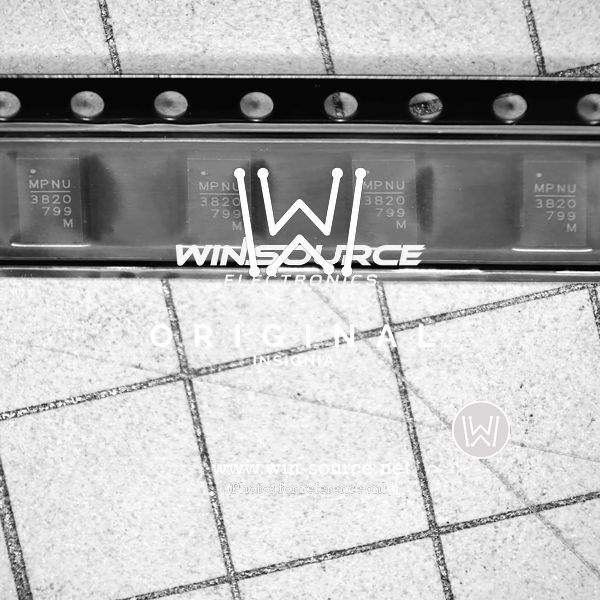

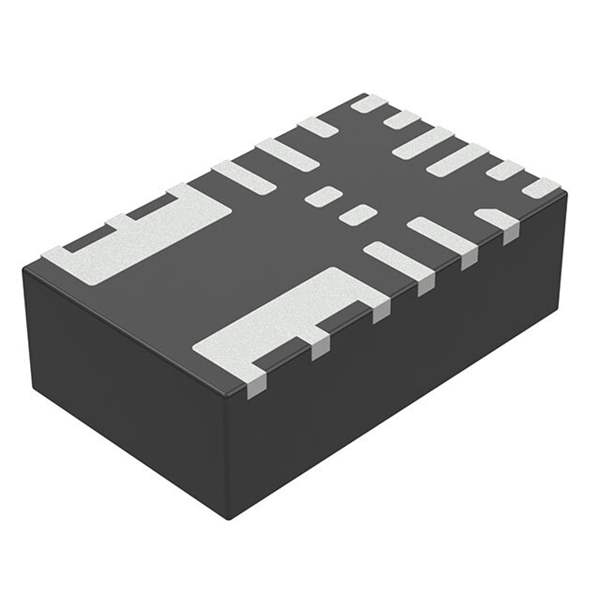

MPM3820GQV-Z Monolithic Power Systems Inc. – Price, Stock & Datasheet MPM3820GQV-Z real image MPM3820GQV-Z real image14392 MPM3820GQV-Z real image14393 MPM3820GQV-Z Real Image1 MPM3820GQV-Z Real Image2
Same model may have multiple batches, images only for reference.
MPM3820GQV-Z Monolithic Power Systems Inc. – Price, Stock & Datasheet MPM3820GQV-Z real image MPM3820GQV-Z real image14392 MPM3820GQV-Z real image14393 MPM3820GQV-Z Real Image1 MPM3820GQV-Z Real Image2
MPM3820GQV-Z Monolithic Power Systems Inc. – Price, Stock & Datasheet MPM3820GQV-Z real image MPM3820GQV-Z real image14392 MPM3820GQV-Z real image14393 MPM3820GQV-Z Real Image1 MPM3820GQV-Z Real Image2
Same model may have multiple batches, images only for reference.

MPM3820GQV-Z

Part No MPM3820GQV-Z
Manufacturer Monolithic Power Systems Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.6-6V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tape & Reel (TR);Cut Tape (CT);
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.7V
Voltage - Input (Max) 6V
Voltage - Output 1 0.6 ~ 6V
Current - Output (Max) 2A
Applications ITE (Commercial)
Features OCP, OTP, UVLO
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 20-PowerLFQFN Module
Size / Dimension 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm)
Supplier Device Package 20-QFN (3x5)
Control Features Enable, Active High
Ultra Librarian 3D Model Ultra Librarian MPM3820GQV-Z CAD Model

Description

The Monolithic Power Systems Inc. MPM3820GQV-Z is a non-isolated PoL module manufactured by Monolithic Power Systems Inc.

  • Application: ITE (Commercial)
  • Voltage Output Range: 0.6 to 6V
  • Protection: OCP, OTP, and UVLO
  • Enable Control: Active High
  • Maximum Output Current: 2A
  • Input Voltage Range: 2.7 to 6V
  • Package: 20-QFN (5x3)
  • Temperature Range: -40°C to 125°C
  • Type: Board Mount
