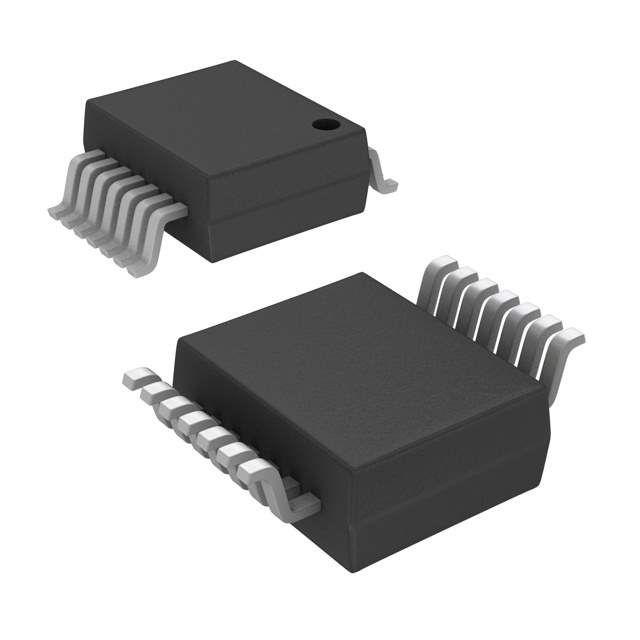

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Number of I/O 8
Interrupt Output Yes
Features POR
Output Type Push-Pull
Current - Output Source/Sink 10mA, 25mA
Max Frequency 400kHz
Supply Voltage - Operating 2.3 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 16-TVSOP
Win Source Part Number 026468-PCA9538DGVR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PCA9538DGVR CAD Model

Description

The PCA9538DGVR from Texas Instruments is an advanced and highly efficient 8-bit I²C and SMBus I/O expander.

  • Applications: Servers, routers, personal computers, and other related electronics
  • Standby Current: Low
  • Operating Voltage: 2.3V to 5.5V
  • Interrupt Output: Yes
  • Reset Input: Active LOW reset input
  • Power-On Reset: Internal power-on reset
  • Hardware Address Pins: Three hardware address pins
  • I/O Configuration: Can be configured as either inputs or outputs
  • Output: Latched output
  • Package: TSSOP-16 package
  • RoHS Compliant: Yes
  • Operating Temperatures: -40°C to +85°C
  • Lead-Free: Yes
  • Bromine-Free: Yes
  • Antimony-Free: Yes
