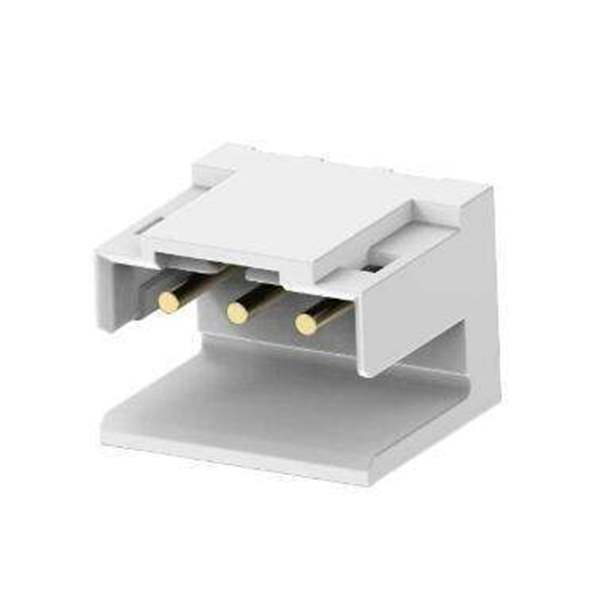

292251-3 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

292251-3

Part No 292251-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 2MM
Datasheet
292251-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Packaging  Bulk
Part Status Active
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.165" (4.20mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.358" (9.09mm)
Insulation Height 0.268" (6.80mm)
Win Source Part Number WS1307817-292251-3
Ultra Librarian 3D Model Ultra Librarian 292251-3 CAD Model

Description

Connector Header Through Hole 3 position 0.079" (2.00mm)
