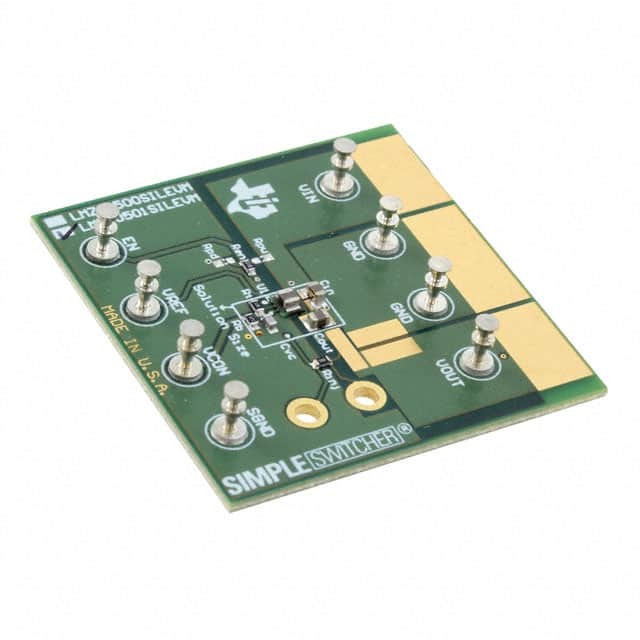

The LMZ10501SILEVM from Texas Instruments is a fully integrated nano module that offers a high-efficiency power solution in a small, easy-to-use package. This evaluation module (EVM) is designed to help engineers and designers quickly assess the capabilities and performance of the LMZ10501 power module, which is ideal for space-constrained applications.

Key Features

• Compact Design: The LMZ10501SILEVM showcases a tiny form factor, making it a perfect choice for portable and space-limited applications where board space is at a premium.
• High Efficiency: With an advanced switching regulator, this EVM provides high efficiency across a wide range of load conditions, ensuring optimal power consumption and heat dissipation.
• Wide Input Voltage Range: The module supports an input voltage range from 2.7V to 5.5V, accommodating a variety of power sources and making it versatile for multiple applications.
• Adjustable Output Voltage: Users can configure the output voltage from 0.8V to 3.6V to match the requirements of the target application, providing flexibility in design.
• Integrated Inductor: The inclusion of an integrated inductor simplifies the design process and reduces external component count, which can lead to a reduction in overall system cost and complexity.

Applications

The LMZ10501SILEVM is suitable for a broad range of applications, including but not limited to:

• Portable electronics
• Wireless communication devices
• Medical equipment
• Point-of-load conversions

Technical Specifications

• Output Current: Up to 1A
• Switching Frequency: 3MHz
• Efficiency: Up to 95%
• Operating Temperature Range: -40°C to 125°C

With its robust feature set and comprehensive support materials, the LMZ10501SILEVM from Texas Instruments serves as an invaluable tool for engineers looking to implement a high-performance, space-efficient power solution in their next project.
