The LMX2571NJKT from Texas Instruments is a highly integrated, wideband, low-power, frequency synthesizer system that provides excellent performance in a compact package. This device is an ideal choice for a variety of applications, including wireless infrastructure, test and measurement equipment, satellite communications, and many other RF-related fields. With its advanced features and capabilities, the LMX2571NJKT stands out as a versatile component for modern electronic systems.

Key Features

• Wide Frequency Range: The LMX2571NJKT can generate frequencies from 10 MHz to 1344 MHz in the integer-N mode and from 10 MHz to 1400 MHz in the fractional-N mode, making it suitable for a wide range of applications.
• Low Power Consumption: Designed for efficiency, the device operates with a low current draw, making it an excellent choice for battery-powered and energy-sensitive systems.
• High Performance: It features low phase noise and high spurious performance, ensuring clean signal generation for high-fidelity applications.
• Integrated VCO: The inclusion of an integrated wideband voltage-controlled oscillator (VCO) simplifies design and reduces the need for external components.
• Programmable: The device can be programmed via a simple 3-wire serial interface, which allows for easy control and configuration.
• Advanced Features: It includes advanced features such as frequency modulation (FM), fast lock with Timeout Counter, and channel stepping.

Applications

• Wireless Infrastructure (e.g., Base Stations, Repeaters)
• Test and Measurement Equipment
• Satellite Communications
• Portable Radio and RF Front-Ends
• Software Defined Radios (SDR)

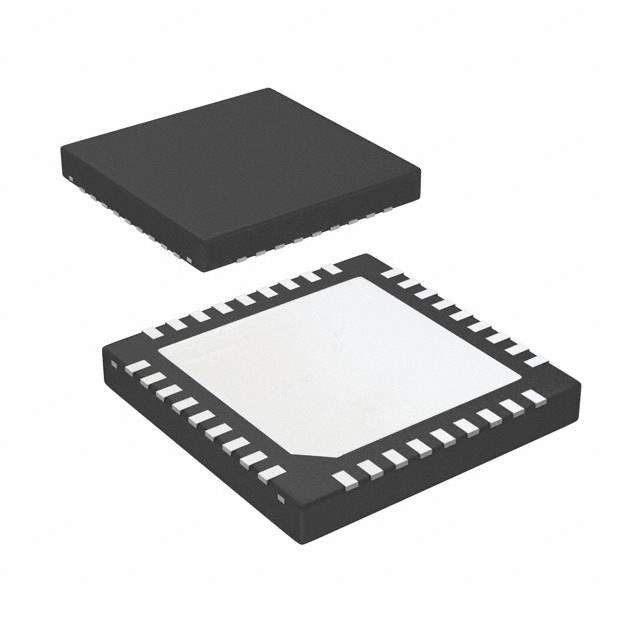

The LMX2571NJKT is housed in a 32-pin WQFN (5x5 mm) package, offering a space-saving solution for designs where board space is at a premium. Its robust design and comprehensive feature set ensure that it meets the requirements of even the most demanding RF applications. As a product from Texas Instruments, a leader in semiconductor solutions, the LMX2571NJKT is backed by extensive support and documentation, making it easier for designers to integrate this synthesizer into their projects.
