Overview of Texas Instruments LMV7219M7

The LMV7219M7 is a high-speed, low-power comparator from Texas Instruments designed to provide precise voltage level detection in a compact package. This component is particularly well-suited for portable and battery-powered applications where power efficiency and space are critical considerations.

Key Features

• Fast Response Time: The LMV7219M7 boasts a propagation delay of only 2.9 ns with 5 mV overdrive, making it one of the fastest comparators in its class. This rapid response time is essential for high-speed signal processing applications.
• Low Power Consumption: With a supply current of just 1.1 mA, the LMV7219M7 is optimized for low-power operations, helping to extend battery life in mobile devices.
• Wide Supply Range: The device operates from a 2.7 V to 5 V supply voltage range, allowing for flexibility in various circuit designs and compatibility with both 3.3 V and 5 V systems.
• Push-Pull Output: The LMV7219M7 features a push-pull output stage which eliminates the need for an external pull-up resistor and can directly drive capacitive loads.

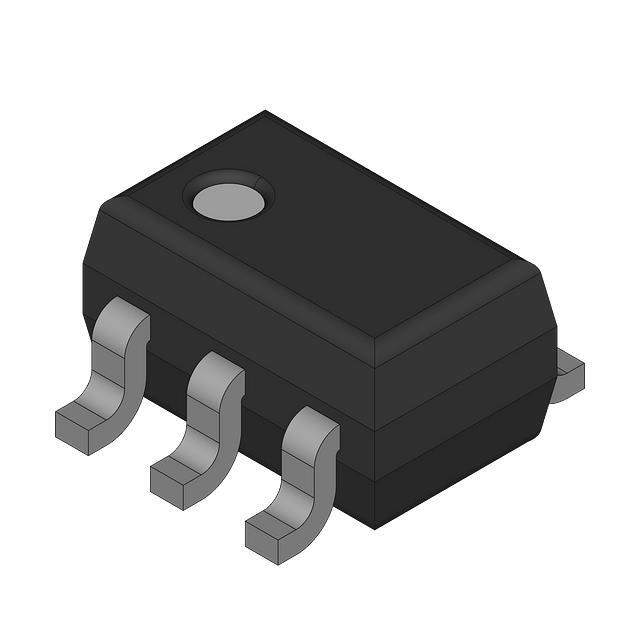

• Tiny Package: Housed in an SOT-23 package, the LMV7219M7 occupies minimal board space, making it ideal for space-constrained applications.

Applications

The LMV7219M7 is versatile and can be used in a wide range of applications, including:

• Portable and wearable devices
• High-speed signal processing
• Window comparators
• Battery-powered systems
• Data acquisition systems
• Zero-crossing detectors

Reliability and Performance

As with all Texas Instruments products, the LMV7219M7 is designed to meet high standards of reliability and performance. Its fast response time and low power consumption make it an excellent choice for designers looking to enhance the efficiency and speed of their electronic systems.

For detailed technical specifications, application notes, and support resources, visit the Texas Instruments website or contact their support team for further assistance.
