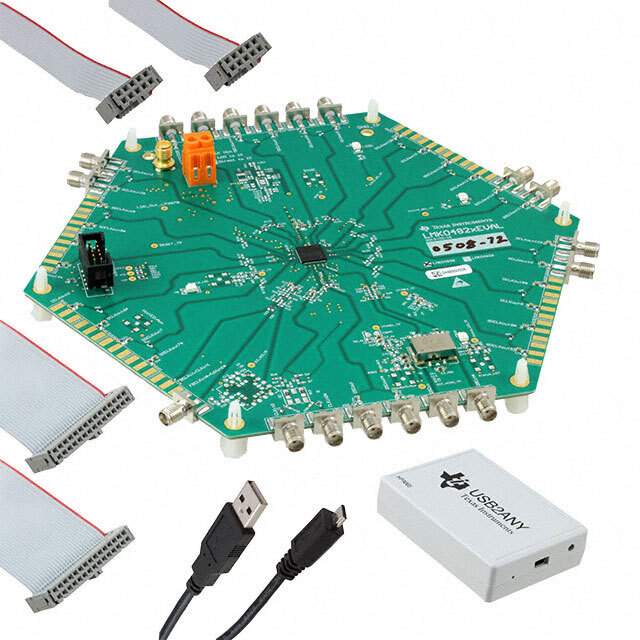

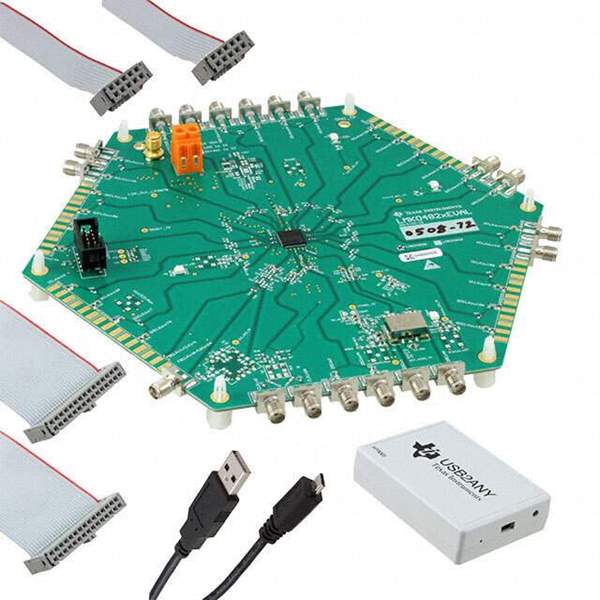

The LMK04828BEVM from Texas Instruments is a comprehensive evaluation module designed for testing and development with the LMK04828, a low-noise clock jitter cleaner and synchronizer. This device is engineered to provide high-performance clocking solutions for a wide range of applications, including wireless infrastructure, data converters, and test and measurement equipment.

Key Features:

• Integrated Dual PLLs: The device contains two phase-locked loops (PLLs) with integrated voltage-controlled oscillators (VCOs), enabling precise frequency synthesis and jitter cleaning.
• Low-Noise Performance: Designed to deliver industry-leading low-noise performance, the LMK04828 reduces clock jitter, enhancing system-level signal integrity.
• Flexible Clocking: It supports numerous inputs and outputs, including LVPECL, LVDS, and LVCMOS, providing versatility for various clocking requirements.
• Programmable: The device is highly programmable via an easy-to-use graphical user interface (GUI), allowing for quick configuration and customization to meet specific design needs.
• Hitless Switching: The evaluation module supports hitless switching, ensuring continuous clock operation during input clock switching and phase adjustments.

Benefits of Using LMK04828BEVM:

The LMK04828BEVM offers engineers a powerful tool to evaluate the capabilities of the LMK04828 jitter cleaner. With this module, users can:

• Test the performance of the LMK04828 in a real-world application setting.
• Experiment with various configurations and signal conditions to optimize the clocking solution for their specific needs.
• Accelerate the development process by leveraging the module's built-in features and Texas Instruments' support resources.

Whether you are developing telecommunications equipment, high-speed data acquisition systems, or other applications requiring stable and clean clock signals, the LMK04828BEVM provides a flexible and efficient platform to kickstart your design process.
