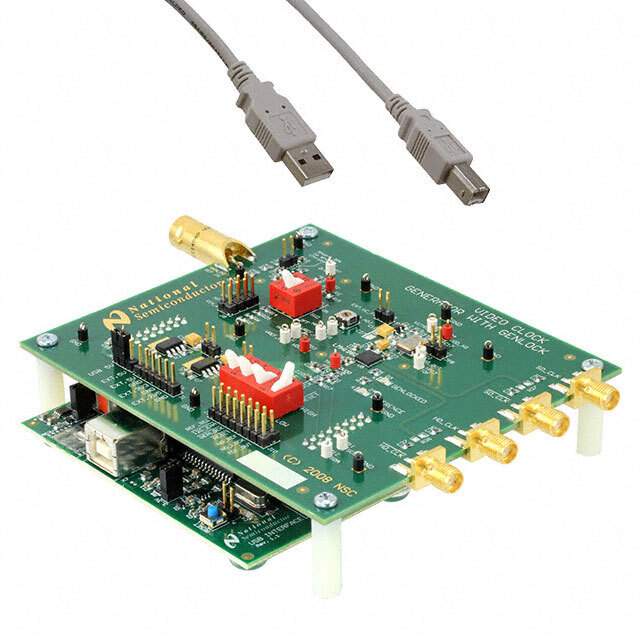

The LMH1982SQEEVAL/NOPB is a versatile evaluation board designed by Texas Instruments to showcase the capabilities of the LMH1982 Multi-Rate Video Clock Generator with Genlock. This advanced IC is engineered to provide a comprehensive timing solution for professional broadcast video applications, including video editing, conversion, signal processing, and transmission systems.

The evaluation board facilitates easy testing and development, offering designers a practical platform to evaluate the LMH1982 chip's performance. It features a wide range of functionalities and supports numerous video standards, making it suitable for various multi-format video applications. The LMH1982 chip itself is capable of generating a clean, low-jitter clock output, which is critical for maintaining signal integrity in high-definition video processing and broadcast systems.

One of the key features of the LMH1982SQEEVAL/NOPB is its genlock capability. Genlock, short for generator locking, is a common technique used in broadcast video that ensures synchronization of video signals from different sources. The LMH1982 chip can lock to any of the standard video reference signals, including NTSC, PAL, and HD tri-level sync, providing users with a flexible and reliable synchronization solution.

The evaluation board is also designed with ease of use in mind. It comes with a user-friendly interface that allows for quick setup and configuration. The board is equipped with various connectors and test points, enabling designers to interface with other systems and equipment easily. Additionally, the LMH1982SQEEVAL/NOPB supports I2C communication, allowing for programmable control over the device's functions and settings.

In summary, the LMH1982SQEEVAL/NOPB from Texas Instruments is an excellent tool for engineers and designers looking to explore the features of the LMH1982 Multi-Rate Video Clock Generator with Genlock. With its robust design, comprehensive support for multiple video standards, and genlock synchronization capabilities, this evaluation board is a valuable asset for developing advanced video processing and broadcast systems.
