Same model may have multiple batches, images only for reference.

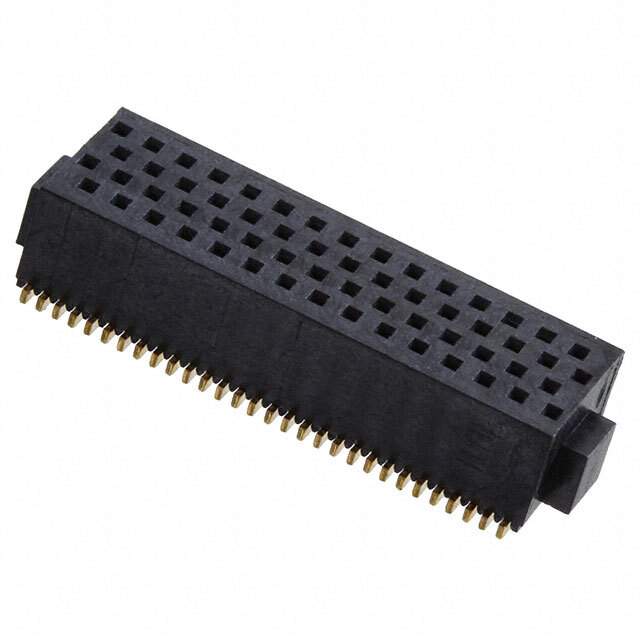

SOLC-115-02-S-Q-P Real Image
Same model may have multiple batches, images only for reference.

SOLC-115-02-S-Q-P

Part No SOLC-115-02-S-Q-P
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SOLC-115-02-S-Q-P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series FOURRAY™ SOLC
Connector Type Receptacle
Contact Type Forked
Style Board to Board
Number of Positions 60
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 4
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.160" (4.06mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Features Pick and Place
Current Rating (Amps) 2.4A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number SOLC-115
Other Names SAM9140,SOLC-115-02-S-Q-P
Standard Package 26
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293059-SOLC-115-02-S-Q-P
Ultra Librarian 3D Model Ultra Librarian SOLC-115-02-S-Q-P CAD Model

Description

The 1293059-SOLC-115-02-S-Q-P is a rectangular connector that is designed to operate in headers, receptacles, and female sockets.

  • Series: FOURRAY™ SOLC
  • Positions: 60
  • Feature: Pick and Place
  • Connector Type: Receptacle
  • Contact Type: Forked
  • Positions Loaded: All
  • Rows: Four
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Material: Phosphor Bronze
  • Voltage Rating: Not Available
  • Mated Stacking Heights: Not Provided
  • Ingress Protection: Not Provided
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 26
  • Mounting Type: SMD (SMT)
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Style: Board to Board
  • Pitch-Mating: 0.050 inches (1.27mm)
  • Contact Finish-Mating: Gold, 30.0 microns (0.76 microns)
  • Contact Finish-Post: Gold, 3.00 microns (0.076 microns)
  • Insulation Color: Black
  • Row Spacing-Mating: 0.050 inches (1.27mm)
  • Insulation Height: 0.160 inches (4.06mm)
  • Contact Shape: Square
  • Temperature Range of Operation: -55°C to 125°C
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.69.4040
