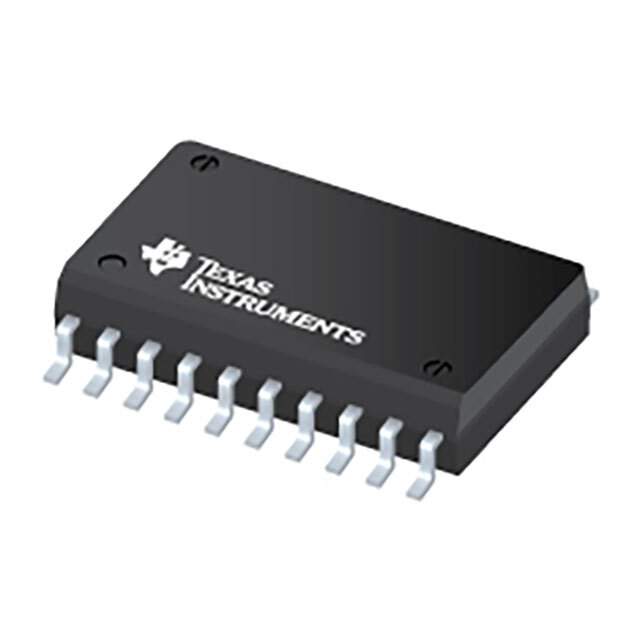

Overview of Texas Instruments ISOW7741DFMR

The Texas Instruments ISOW7741DFMR is a high-performance, quad-channel digital isolator with integrated high-efficiency power converters. This advanced component is part of the ISOW774x family, designed to offer robust signal isolation for a wide range of applications, including industrial automation, medical equipment, and power supplies.

Key Features

• High Isolation: With an isolation rating of 5000Vrms for 1 minute, the ISOW7741DFMR provides reliable protection against high voltage spikes and surges, ensuring the safety of sensitive electronic circuits.
• Integrated Power: The device integrates a DC-DC converter, providing isolated power and reducing the need for separate isolated power supplies. This feature simplifies design and saves board space.
• Data Rate: It supports a data rate of up to 100 Mbps, allowing for high-speed data transfer between isolated domains.
• Low Power Consumption: The ISOW7741DFMR is designed for efficiency, with low power consumption that helps to minimize heat generation and improve system reliability.
• Robust Operation: It operates over a wide temperature range from -40°C to +125°C, making it suitable for harsh environments.
• Signal Integrity: The device maintains excellent signal integrity with low propagation delay and jitter, which is critical for time-sensitive communication protocols.

Applications

The ISOW7741DFMR is versatile and can be used in various applications that require high-voltage isolation and data integrity. Its primary applications include:

• Industrial automation systems
• Medical equipment with stringent safety requirements
• Isolated sensor interfaces
• Isolated SPI, I2C, or UART interfaces
• Power supply control and monitoring

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the ISOW7741DFMR is no exception. It is built to meet stringent industry standards, ensuring long-term performance and stability in a variety of conditions. Whether for critical medical systems or industrial control applications, the ISOW7741DFMR is a reliable choice for designers looking to integrate high-performance isolation into their designs.

For detailed technical specifications and application guidance, designers should refer to the official Texas Instruments datasheets and product support documentation.
