Introducing the LTM2881IY-3 Isolated RS485/RS422 μModule Transceiver

The LTM2881IY-3 is a complete, galvanically isolated RS485/RS422 transceiver from Linear Technology that offers robust communication with significant protection for sensitive electronics. This innovative μModule (micro module) device integrates an isolated power supply, an isolated RS485/RS422 transceiver, and robust network protection, all in a compact, surface-mount BGA package. It is designed to provide reliable data communication in harsh environments, where noise immunity and ESD protection are critical.

Key Features:

• Integrated Isolation: The LTM2881IY-3 features onboard isolation, providing 2500Vrms for one minute between the transceiver and the logic interface. This level of isolation ensures protection against high voltage spikes and surges, enhancing system reliability and longevity.
• Power Supply: An integrated, isolated DC/DC converter delivers up to 1W of power, eliminating the need for external isolated power supplies and simplifying the design process.
• Robust Data Communication: With a fixed baud rate of up to 20Mbps, the device supports high-speed data transmission while maintaining signal integrity across long cable distances.
• Protection Features: The module is equipped with ±15kV ESD protection on the transceiver interface, and features over-temperature protection, enhancing the resilience of the product in demanding conditions.

Applications:

The LTM2881IY-3 is ideal for industrial, automotive, and instrumentation applications that require reliable data communication with strong electromagnetic interference (EMI) protection. Common use cases include:

• Isolated RS485/RS422 interfaces
• Industrial field buses
• Networked control systems
• Automotive control systems

Technical Specifications:

• Supply Voltage: 3.3V
• Operating Temperature Range: -40°C to +105°C

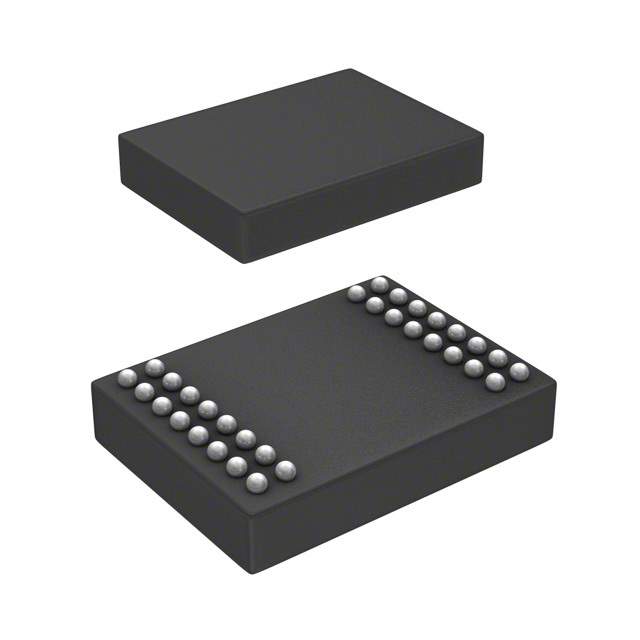

• Package: Surface Mount LGA/BGA
• Standards Compliance: Meets or exceeds TIA/EIA-485-A specifications

With its combination of isolation, integrated power, high-speed communication, and protection features, the LTM2881IY-3 from Linear Technology stands out as a comprehensive solution for isolated RS485/RS422 communication needs. Its robust design and easy implementation make it a top choice for designers looking to enhance the reliability and performance of their systems.
