DS25BR440TSQ/NOPB - Texas Instruments 3.125 Gbps Quad Channel LVDS Buffer/Repeater

The DS25BR440TSQ/NOPB is a robust, high-performance quad channel LVDS (Low Voltage Differential Signaling) buffer/repeater designed by Texas Instruments to enhance signal integrity for high-speed data transmission. This device is ideal for applications that demand low power dissipation and minimal noise in their data communication systems.

The DS25BR440TSQ/NOPB operates at a wide range of data rates from 0 Mbps to 3.125 Gbps, making it versatile for various applications, including point-to-point baseband data transmission, high-speed digital signal processing, and telecommunications infrastructure. The integrated equalization feature compensates for the losses of interconnect mediums like PCB traces or cables, thereby extending the signal reach and improving the performance of the system.

With its quad-channel configuration, this repeater can handle multiple high-speed data streams simultaneously, which is particularly useful in complex systems requiring multiple data channels. Each channel incorporates a programmable equalizer and a programmable output swing, providing flexibility to optimize the signal integrity for different physical media and lengths.

The DS25BR440TSQ/NOPB also includes advanced features such as input signal detection, which allows power savings by putting the device into a low-power idle state when no input signal is detected. Additionally, it supports a fail-safe feature that ensures a known output state when inputs are undriven, further enhancing the reliability of the system.

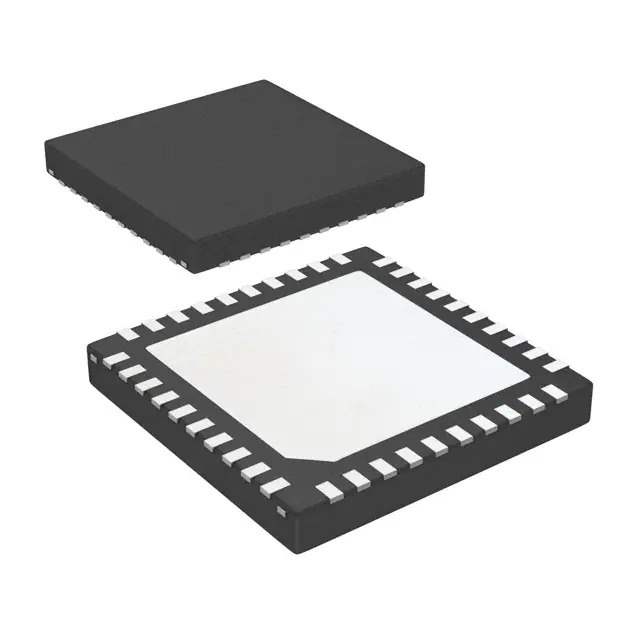

For ease of integration into various designs, the device is offered in a space-saving 40-pin WQFN package. It operates over the industrial temperature range (-40°C to 85°C), ensuring reliable performance across diverse environmental conditions.

Whether it's for high-speed backplane, cable extension, or data aggregation applications, the DS25BR440TSQ/NOPB from Texas Instruments provides a high-quality solution for extending LVDS signal distances while maintaining signal integrity, making it a go-to choice for engineers and designers working on advanced communication systems.
