Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Texas Instruments
Series DCP01B
Packaging Tube
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 4.5V
Voltage Input MAX 5.5V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Maximum) 42mA, 42mA
Power (Watts) 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features OTP, SCP
Operating Temperature Range -40°C ~ 100°C
Efficiency 82%
Mounting Style Through Hole
Package 14-DIP Module (0.300", 7.62mm), 7 Leads
Dimension 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Manufacturer Package 7-PDIP
Win Source Part Number 772531-DCP010512DBPG4
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DCP010512DBPG4 CAD Model

Description

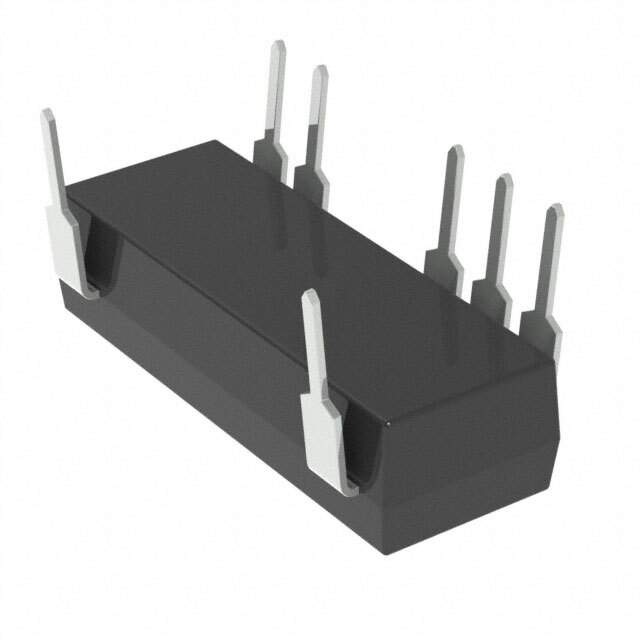

The Texas Instruments DCP010512DBPG4 is a highly efficient, isolated DC-DC converter designed to meet a wide range of application needs. This miniature power module offers a dual output of ±12V from a 5V input, making it an ideal choice for applications that require isolated power supplies within a compact footprint.

Key Features:

  • Isolation: The DCP010512DBPG4 provides 1kV RMS of isolation for 1 minute, ensuring that the input and output are electrically separated. This feature is critical for safety and noise reduction in sensitive electronic systems.
  • Output Power: It delivers a reliable power output with dual ±12V at up to 83mA, suitable for a wide range of uses, including industrial control systems, data acquisition, and mixed-signal boards.
  • Efficiency: With an efficiency of up to 85%, this DC-DC converter minimizes power loss and heat generation, thereby enhancing the overall performance of the system.
  • Regulation: The module boasts excellent line and load regulation to maintain stable output voltage despite variations in input voltage or output load.
  • Footprint: The compact size of the DCP010512DBPG4, encapsulated in a 24-pin DIP package, allows it to be easily integrated into space-constrained applications.

Applications:

The DCP010512DBPG4 is versatile and can be used in various applications, including:

  • Isolated Sensor Interfaces
  • Test Equipment
  • Industrial Control Systems
  • Telecommunications Equipment
  • Data Acquisition Systems

Quality and Reliability:

As with all Texas Instruments products, the DCP010512DBPG4 is manufactured to the highest standards of quality and reliability. It is designed to operate over a wide industrial temperature range, ensuring performance in the most demanding environments.

Conclusion:

With its robust isolation, efficient power conversion, and compact size, the Texas Instruments DCP010512DBPG4 is a powerful solution for designers looking to incorporate an isolated power supply into their systems without compromising on space or performance.
