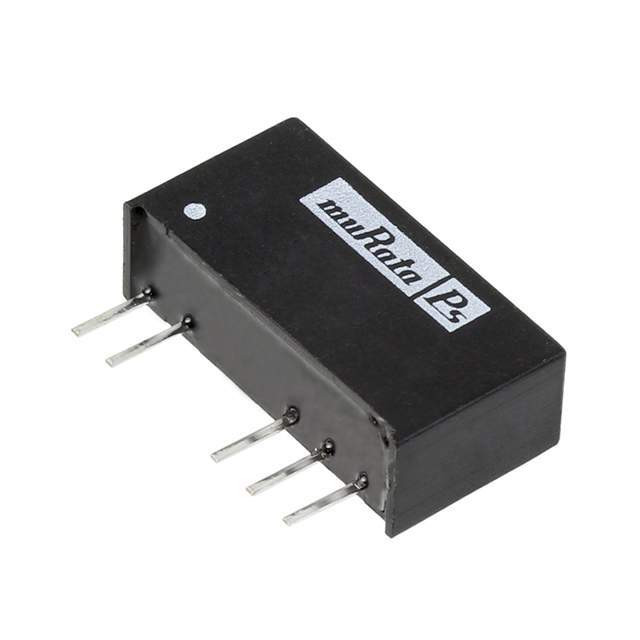

HPR405C Murata Power Solutions Inc.
Same model may have multiple batches, images only for reference.

HPR405C

Part No HPR405C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description 0.75 W, UNREG. DC/DC CONV. ROHS / Module DC-DC 5VIN 2-OUT 15V/-15V 0.025A/-0.025A 0.75W 5-Pin SIP
Datasheet
HPR405C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series HPR4xxC
Packaging Tube
Part Status Obsolete(EOL)
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 4.5V
Voltage Input MAX 5.5V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Maximum) 25mA, 25mA
Power (Watts) 750mW
Voltage - Isolation 3kV (3000V)
Applications ITE (Commercial)
Operating Temperature Range -25°C ~ 85°C
Efficiency 75%
Mounting Style Through Hole
Package 7-SIP Module, 5 Leads
Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
Win Source Part Number 776184-HPR405C
Popularity Medium
Supply and Demand Status Limited
Family Name HPR405C
Introduction Date March 03, 2008
Country of Origin China, United States of America
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian HPR405C CAD Model

Description

The Murata Power Solutions Inc. electronic component with the Win Source Part Number 776184-HPR405C is an obsolete product.

  • Power: 750mW
  • Efficiency: 75%
  • Series: HPR4xxC
  • Packaging: Tube
  • Mounting Style: Through-hole
  • Operating Temperature: -25°C to 85°C
  • Voltage Isolation: 3kV
  • Output Voltage: 15V, -15V
  • Maximum Output Current: 25mA, 25mA
  • Dimensions: 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
  • Applications: ITE (Commercial)
  • Production Status: No longer in production
