Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer XP Power
Series IT
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 18V
Voltage Input MAX 75V
Voltage - Output 1 12V
Current - Output (Maximum) 250mA
Power (Watts) 3W
Voltage - Isolation 1.5kV (1500V)
Applications ITE (Commercial)
Features Remote On/Off, SCP
Operating Temperature Range -40°C ~ 100°C
Efficiency 84%
Mounting Style Through Hole
Package 9-SIP Module, 7 Leads
Dimension 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.2mm x 12.5mm)
Control Features Enable, Active Low
Win Source Part Number 777588-IT4812SA
Popularity Medium
Supply and Demand Status Balance
Family Name IT4812SA
Introduction Date May 28, 2009
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian IT4812SA CAD Model

Description

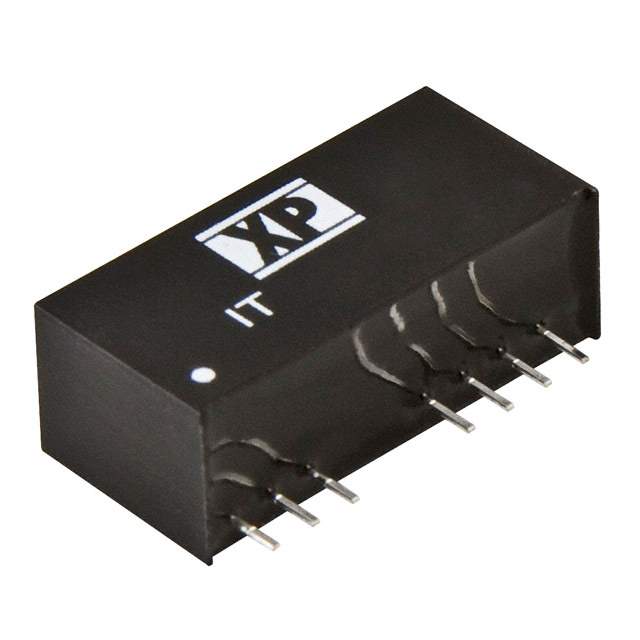

The IT4812SA is a 3W isolated DC-DC converter that is designed for use in ITE (Commercial) applications, manufactured by XP Power.

  • Package: 9-SIP Module, 7 Leads
  • Features: Remote on/off, Short circuit protection
  • Input Voltage Range: 18V to 75V
  • Output Voltage: 12V
  • Efficiency: 84%
  • Mounting Style: Through-hole
  • Series: IT
