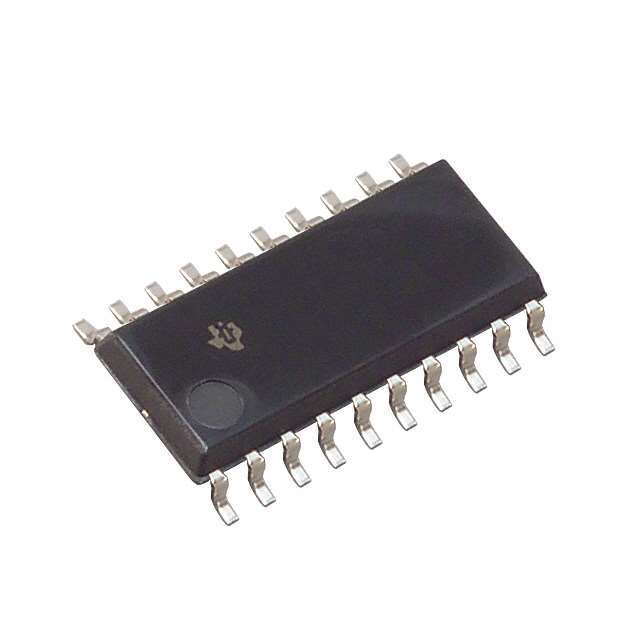

Same model may have multiple batches, images only for reference.
SN74LS684N Texas Instruments
Same model may have multiple batches, images only for reference.

SN74LS684N

Part No SN74LS684N
Manufacturer Texas Instruments
Catalog Logic - Comparators
Description IC COMPARATOR MAGNITUDE 20SO
Datasheet
SN74LS684N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type Magnitude Comparator
Number of Bits 8
Output Active Low
Output Function A=B, A>B
Supply Voltage - Operating 4.85 V to 5.25 V
Current - Output High, Low 400μA, 24mA
Max Propagation Delay @ V, Max CL 30ns @ 5V, 45pF
Temperature Range - Operating 0°C to 70°C
Mounting Surface Mount
Win Source Part Number 042769-SN74LS684N
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SN74LS684N CAD Model

Description

The SN74LS684N is a high-performance integrated circuit (IC) manufactured by Texas Instruments, a global leader in semiconductor technology.

  • Type: 8-bit magnitude comparator
  • Switching Speed: 27 ns (typical)
  • Operating Voltage Range: 4.75V to 5.25V
  • Technology: Low-power Schottky
  • Design: Fully buffered
  • Package: 20-pin plastic dip package
  • Operating Temperature Range: -0°C to 70°C
