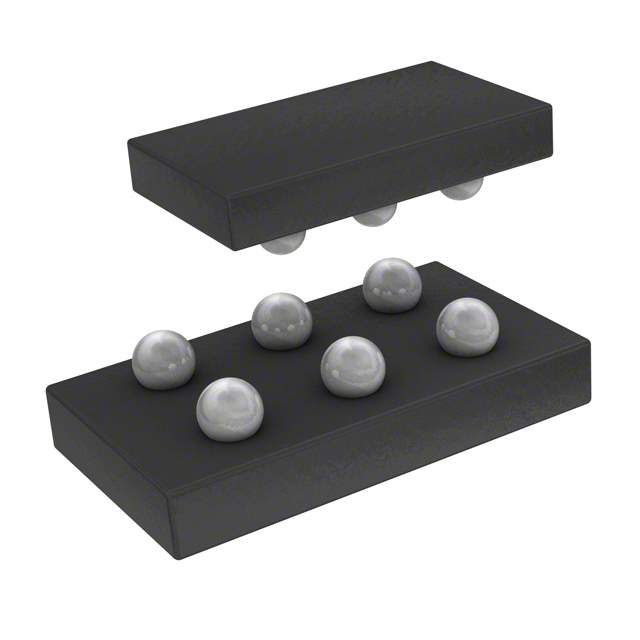

Introducing the CSD83325LT MOSFET by Texas Instruments

The CSD83325LT is a state-of-the-art power MOSFET brought to you by Texas Instruments, a leader in semiconductor design and manufacturing. This product is part of TI's NexFET™ line, which is renowned for its high performance and efficiency in power management applications.

Key Features

• Low On-Resistance: The CSD83325LT boasts a remarkably low on-resistance (R_DS(on)) of just 8.7 mΩ at V_GS = 4.5 V, which enhances its efficiency in conducting electricity and reduces energy loss due to heating.
• High Continuous Drain Current: With a continuous drain current (I_D) of 40 A, this MOSFET can handle high current applications with ease, making it ideal for power-intensive tasks.
• Advanced Packaging: Encased in a compact SON package with a footprint of just 2mm x 2mm, the CSD83325LT is designed for space-constrained applications without compromising on performance.
• Optimized Gate Charge: The device's optimized gate charge (Q_g) allows for reduced switching losses, which is critical for high-frequency power switching applications.

Applications

The CSD83325LT is versatile and can be used in various applications, including:

• DC/DC Converters
• Motor Drives
• Power Supply Systems
• Battery Management Systems
• Load Switches

Reliability and Performance

Designed with reliability in mind, the CSD83325LT operates over a broad temperature range and is characterized for performance in extended environments. This ensures that your projects will benefit from consistent performance, even under varying operating conditions. Its robust thermal characteristics also mean that it can handle significant power without overheating, thanks to the efficient thermal dissipation of the SON package.

Why Choose the CSD83325LT?

When it comes to power management, the CSD83325LT is a top contender for engineers who demand high efficiency, low power loss, and compact design. Whether you are designing the next generation of portable electronics, energy-efficient power supplies, or robust motor control systems, the CSD83325LT from Texas Instruments provides the performance and reliability you need to power your innovation.

For detailed specifications, application notes, and design resources, be sure to visit the Texas Instruments website and explore the extensive support documentation available for the CSD83325LT.
