The CDCF2510PW is a high-performance, low-skew, low-jitter clock buffer from Texas Instruments. Designed to distribute high-speed signals with minimal signal degradation, this device is an excellent choice for clock distribution in a wide range of digital applications. The CDCF2510PW is specifically engineered to meet the stringent requirements of applications such as telecommunications, computing, and high-speed data acquisition.

Featuring a 1:10 clock distribution solution, the CDCF2510PW can take a single input and fan out to ten outputs, ensuring synchronous signal distribution. This capability is particularly beneficial in systems that require multiple synchronized clocks for proper operation. With an operating voltage range of 3.3V ±0.3V, this clock buffer can easily integrate into various system designs without the need for additional voltage regulation components.

The device boasts a low additive phase jitter, typically less than 250ps (peak-to-peak), which makes it suitable for high-performance digital systems where clock integrity is paramount. The CDCF2510PW also features a wide operating temperature range from -40°C to 85°C, ensuring reliable performance under extreme conditions.

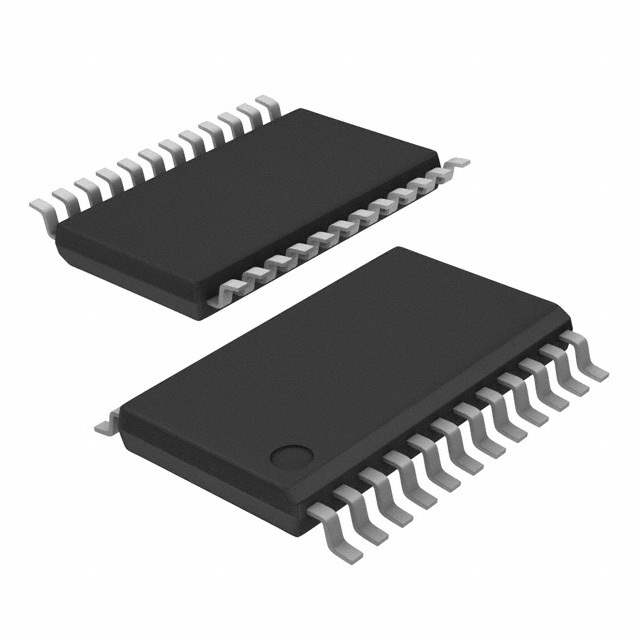

Constructed in a 24-pin TSSOP (Thin Shrink Small Outline Package), the CDCF2510PW is designed for space-saving implementation without compromising on functionality. It also supports industrial temperature ranges, making it versatile for both commercial and industrial applications. The buffer's design is optimized to minimize both input-to-output skew and output-to-output skew, thus preserving the timing alignment of signals across the system.

With its robust design and advanced features, the Texas Instruments CDCF2510PW clock buffer is a prime choice for system designers looking to optimize their clock distribution networks for precision and reliability.
