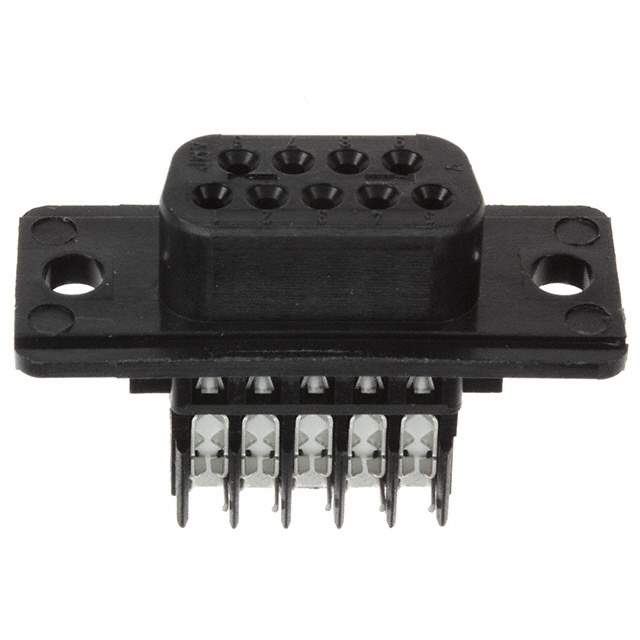

745201-7 Real Image
Same model may have multiple batches, images only for reference.

745201-7

Part No 745201-7
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-SUB RCPT 9POS IDC  /  9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDE-20
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination IDC, Discrete Wire
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250V
Color Black
Dielectric Material Thermoplastic
Wire Gauge 22-26 AWG
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 745201
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Other Names 7452017,A31938
Standard Package 140
Win Source Part Number 1188947-745201-7
Ultra Librarian 3D Model Ultra Librarian 745201-7 CAD Model

Description

The 745201-7 is a 9-position receptacle connector with female sockets.

  • Positions: 9
  • Connector Type: D-sub
  • Rows: 2
  • Termination: IDC, discrete wire
  • Wire Gauge: 22-26 AWG
  • Contact Material: phosphor bronze
  • Contact Finish: gold
  • Contact Finish Thickness: 30.0 μin (0.76 μm)
  • Voltage Rating: 250V
  • Operating Temperature: -55°C ~ 105°C
  • Package: tray
  • Standard Package: 140
  • Suitable For: connectors, interconnects, and D-sub connectors
