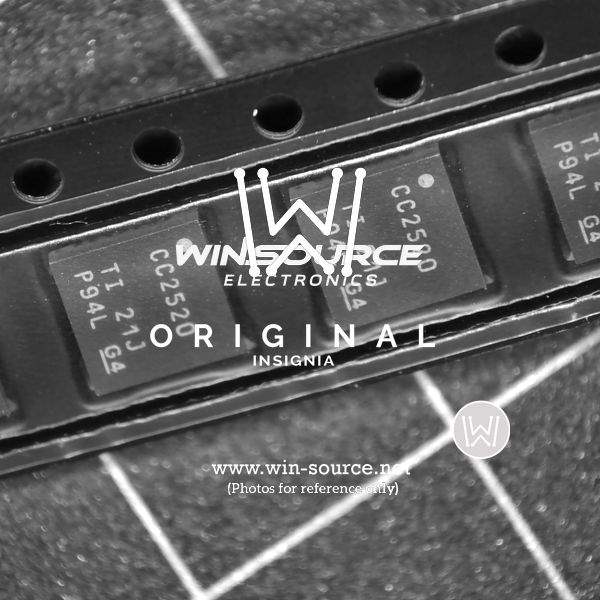

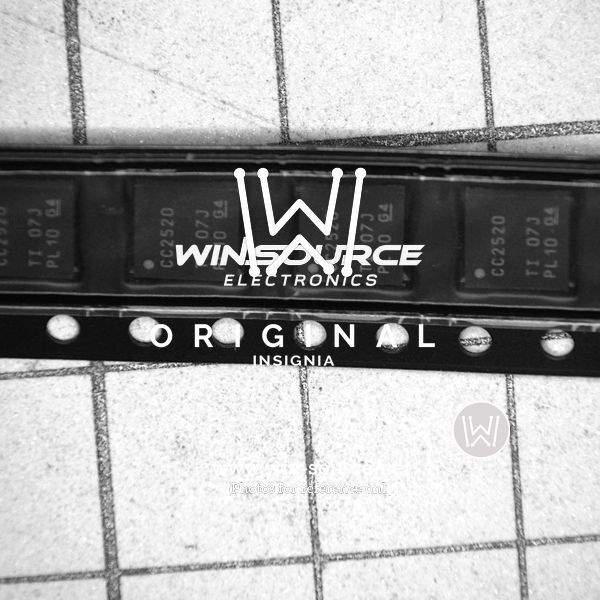

CC2520RHDR Real Image CC2520RHDR real image2955 CC2520RHDR Real Image1 CC2520RHDR Real Image2
Same model may have multiple batches, images only for reference.
CC2520RHDR Real Image CC2520RHDR real image2955 CC2520RHDR Real Image1 CC2520RHDR Real Image2
CC2520RHDR Real Image CC2520RHDR real image2955 CC2520RHDR Real Image1 CC2520RHDR Real Image2
Same model may have multiple batches, images only for reference.

CC2520RHDR

Part No CC2520RHDR
Manufacturer Texas Instruments
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU 802.15.4 28-VFQFN
Datasheet
CC2520RHDR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type TxRx + MCU
RF Family/Standard 802.15.4
Protocol Zigbee
Modulation DSSS, O-QPSK
Frequency 2.4GHz
Data Rate (Max) 250kbps
Power - Output 5dBm
Sensitivity -98dBm
Memory Size 768B RAM
Serial Interfaces SPI
GPIO 6
Supply Voltage - Operating 1.8 V to 3.8 V
Current - Receiving 18.5mA to 22.3mA
Current - Transmitting 25.8mA to 33.6mA
Temperature Range - Operating -40°C to 125°C
Dimension 28-VFQFN Exposed Pad
Win Source Part Number 012767-CC2520RHDR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name CC2520
Introduction Date July 01, 2007
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian CC2520RHDR CAD Model

Description

CC2520RHDR Overview

The CC2520RHDR transceiver is a second-generation Zigbee/IEEE 802.15.4 compliant product designed for robust network formation. It provides a highly flexible and reliable stage for sophisticated wireless network applications.

Features and Benefits

  • Compliance with Zigbee/IEEE 802.15.4 standards.
  • Resistance to interference enhances network reliability.
  • Advanced security features protect data integrity.
  • Wide operating temperature range.

Applications and Projects

  • Smart grid and energy management.
  • Wireless sensor networks.
  • Healthcare monitoring systems.
  • Industrial monitoring and control.
