Product Overview: Texas Instruments BQ25100HYFPR

The Texas Instruments BQ25100HYFPR is a highly integrated battery charge management IC that is designed for space-constrained and portable applications. This advanced chip is specifically tailored to deliver efficient and reliable charging for single-cell lithium-ion and lithium-polymer batteries.

Key Features

• Charge Management: The BQ25100HYFPR offers a complete charge management solution with an integrated linear charger, power path management, and load switch in a compact package.
• High Efficiency: With a charge efficiency that can reach up to 92%, this IC ensures minimal heat generation and maximizes battery life for your devices.

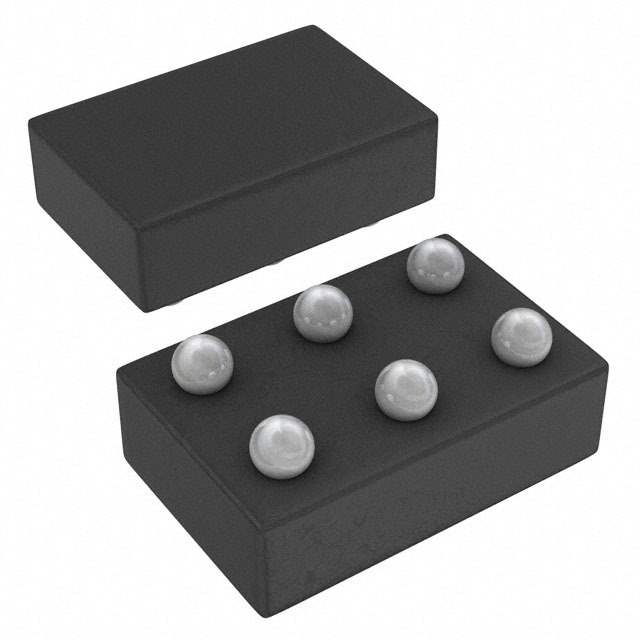

• Small Footprint: The device is available in a 2.00-mm × 2.00-mm, 15-ball wafer-level chip-scale package (WCSP), making it ideal for portable devices where space is at a premium.
• Flexible Power Input: It supports a wide range of input sources, including USB and AC adapters, with an input voltage range from 3.9V to 6.2V.
• Programmable Charge Parameters: The BQ25100HYFPR allows for programmable charge current, pre-charge current, termination current threshold, and recharge threshold, providing flexibility for various battery sizes and chemistries.
• Protection Features: It includes multiple safety features such as thermal regulation, input over-voltage protection, battery over-voltage protection, and a safety timer for added security.

Applications

The BQ25100HYFPR is suitable for a wide array of portable applications, such as:

• Smart Wearables
• Fitness Trackers
• Wireless Headsets
• Smart Watches
• Portable Medical Devices
• And other battery-powered consumer electronics

Conclusion

With its compact design, high efficiency, and versatile feature set, the Texas Instruments BQ25100HYFPR battery management IC stands out as an excellent choice for designers looking to optimize battery performance and extend the operational life of their portable devices. Its advanced charge management capabilities ensure that devices remain powered up and ready for use, while its safety features provide peace of mind for both manufacturers and end-users.
