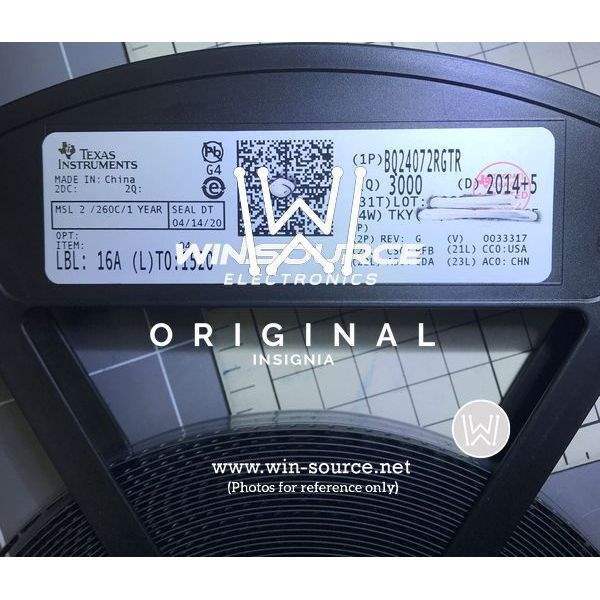

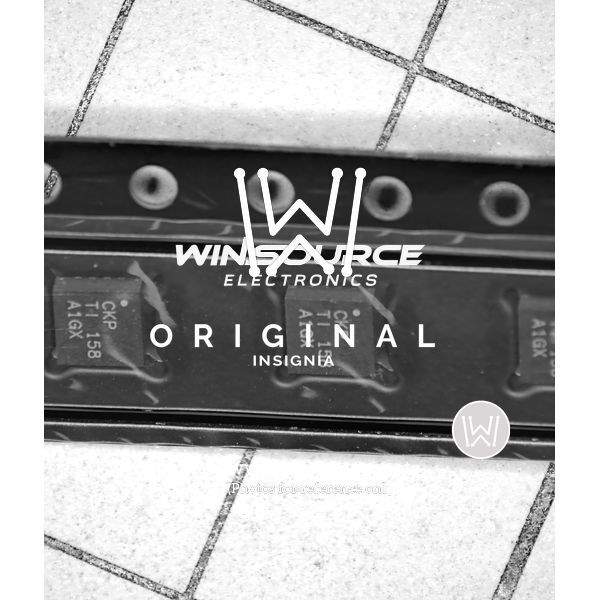

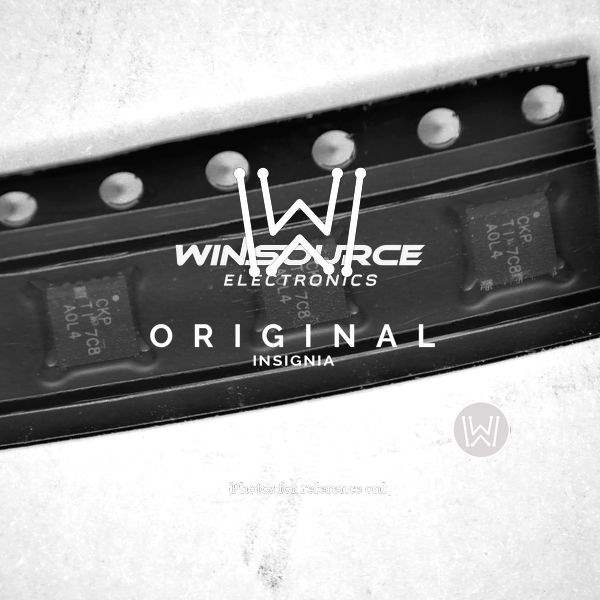

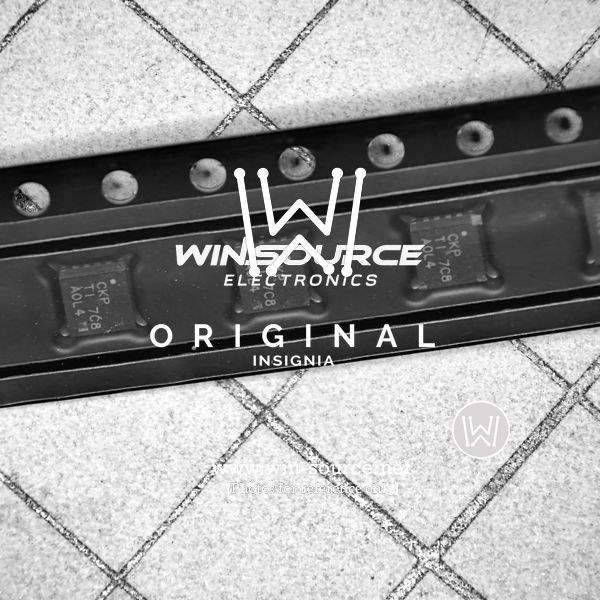

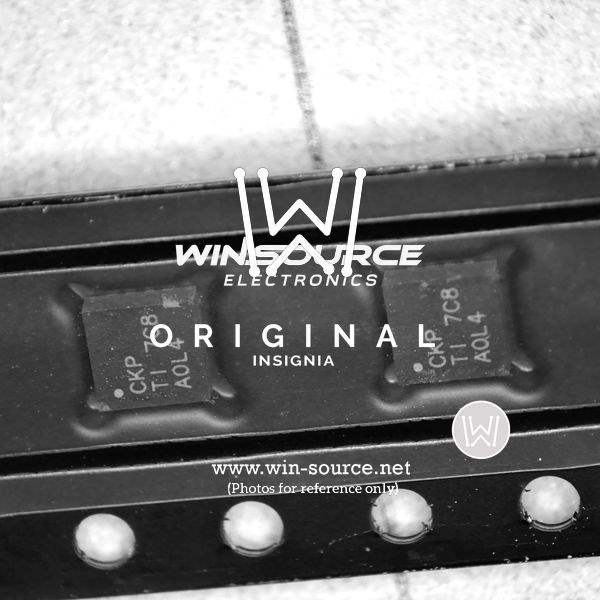

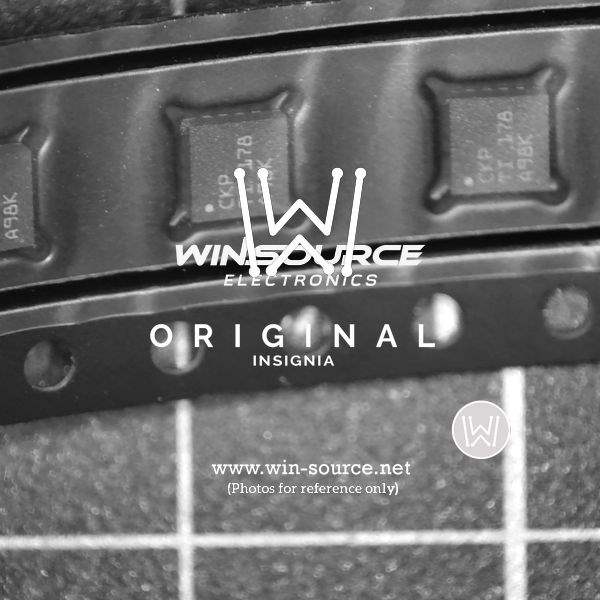

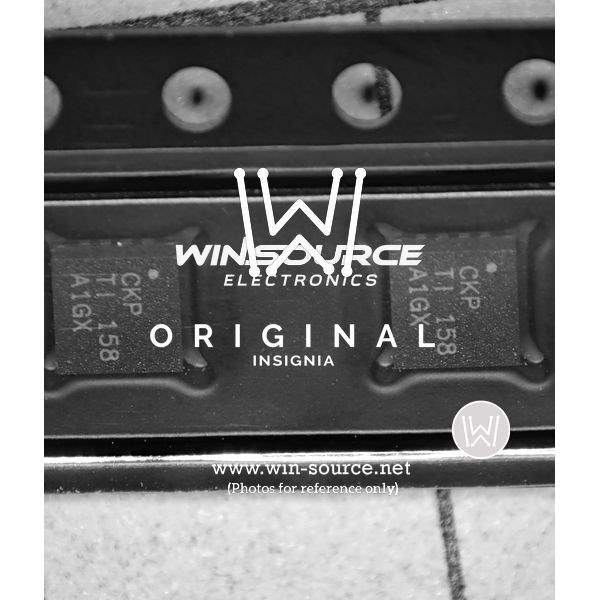

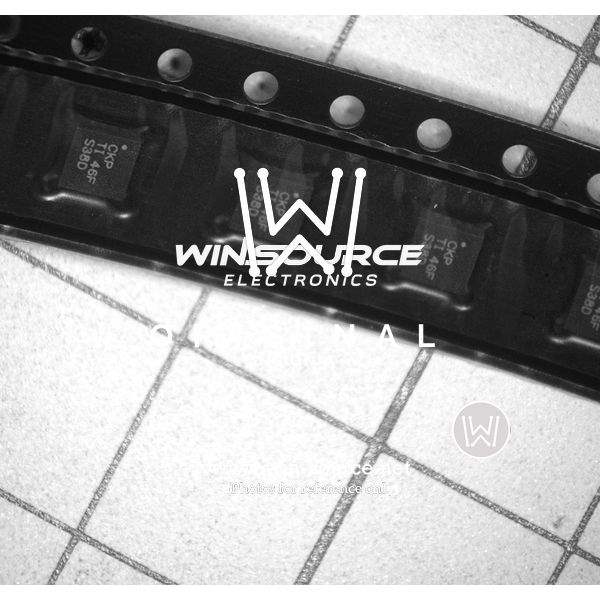

BQ24072RGTR Texas Instruments BQ24072RGTR Real Image BQ24072RGTR label picture BQ24072RGTR real image2614 BQ24072RGTR real image2615 BQ24072RGTR real image2616 BQ24072RGTR real image2617 BQ24072RGTR Real Image1 BQ24072RGTR Real Image2 BQ24072RGTR Real Image3 BQ24072RGTR Real Image4 BQ24072RGTR Real Image5
Same model may have multiple batches, images only for reference.
BQ24072RGTR Texas Instruments BQ24072RGTR Real Image BQ24072RGTR label picture BQ24072RGTR real image2614 BQ24072RGTR real image2615 BQ24072RGTR real image2616 BQ24072RGTR real image2617 BQ24072RGTR Real Image1 BQ24072RGTR Real Image2 BQ24072RGTR Real Image3 BQ24072RGTR Real Image4 BQ24072RGTR Real Image5
BQ24072RGTR Texas Instruments BQ24072RGTR Real Image BQ24072RGTR label picture BQ24072RGTR real image2614 BQ24072RGTR real image2615 BQ24072RGTR real image2616 BQ24072RGTR real image2617 BQ24072RGTR Real Image1 BQ24072RGTR Real Image2 BQ24072RGTR Real Image3 BQ24072RGTR Real Image4 BQ24072RGTR Real Image5
Same model may have multiple batches, images only for reference.

BQ24072RGTR

Part No BQ24072RGTR
Manufacturer Texas Instruments
Catalog PMIC - Battery Chargers
Description IC LI-ION CHARGE MGMT 16-QFN
Datasheet
BQ24072RGTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Battery Chemistry Lithium-Ion
Number of Cells 1
Current - Charging Constant - Programmable
Programmable Features Current, Timer
Fault Protection Over Temperature, Over Voltage, Reverse Current, Short Circuit
Charge Current - Max 1.5A
Battery Pack Voltage 4.2V
Maximum Supply Voltage 6.4V
Temperature Range - Operating -40°C to 125°C (TJ)
Case / Package 16-QFN (3x3)
Win Source Part Number 011900-BQ24072RGTR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name BQ24072
Introduction Date October 01, 2007
ECCN EAR99
Country of Origin Philippines, Philippines
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian BQ24072RGTR CAD Model

Description

Description

The BQ24072RGTR is a sophisticated lithium battery charger IC offering remarkable efficiency and safety features. It is suited for low-power devices and helps maximize battery runtime without sacrificing safety or reliability.

Applications

  • Portable media players
  • Wireless mice and keyboards
  • Mini drones
  • Smart home devices
  • Portable gaming systems

Features and Benefits

  • Dynamic power path management allows for seamless use of power sources
  • Over-voltage protection enhances device and user safety
  • Compact and lightweight design makes it perfect for miniature gadgets
  • Input current regulation provides stability to power sources

This IC is ideal for those looking to incorporate a reliable and advanced charging solution into mobile and portable electronics.
