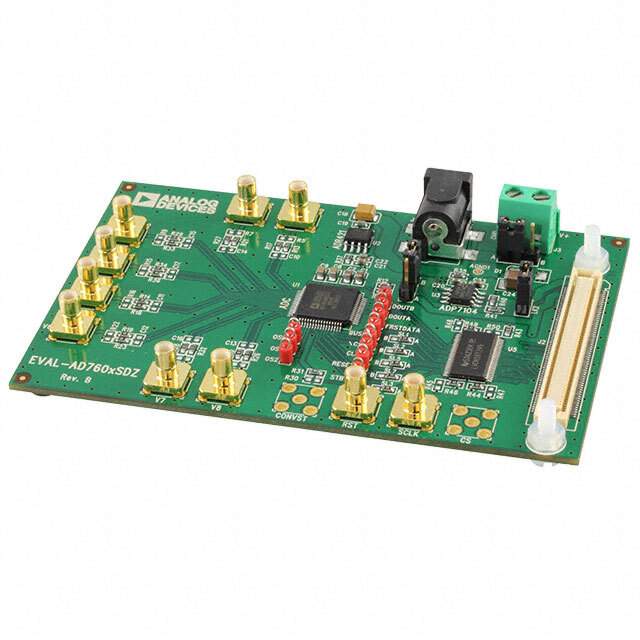

EVAL-AD7608SDZ Product Overview

The EVAL-AD7608SDZ is a high-performance evaluation board designed to showcase the capabilities of the AD7608, an 8-channel synchronous data acquisition system by Analog Devices Inc. This powerful evaluation platform is engineered to facilitate the testing and development of applications requiring multiple analog inputs with high precision and fast sampling rates.

Key Features of AD7608

• Multi-Channel Flexibility: The AD7608 features 8 analog input channels, allowing for simultaneous sampling and processing of multiple signals. This is ideal for advanced industrial, automotive, and audio applications where multiple sensor inputs are required.
• High Precision: With 18-bit resolution and a fast sampling rate of up to 200 kSPS (kilo-samples per second), the device ensures accurate and rapid data acquisition, critical for precision-demanding applications.
• Oversampling and Filtering: The AD7608 includes a digital filter for oversampling, which helps in reducing noise and improving the signal-to-noise ratio (SNR), thereby enhancing measurement accuracy.
• Integrated Features: The device comes with an on-board reference and reference buffer, input clamp protection, overvoltage protection, and a flexible parallel/serial interface, making it a robust solution for complex data acquisition systems.

About the EVAL-AD7608SDZ Evaluation Board

The EVAL-AD7608SDZ evaluation board is designed to demonstrate the full range of features offered by the AD7608. It provides an array of configurable options and easy-to-use interface connectors to ensure a smooth user experience. The board is also compatible with various processor platforms and can be interfaced with a PC for data analysis via its SPI and parallel interface options.

Applications

The AD7608 and its evaluation board are suitable for a wide range of applications, including:

• Data acquisition systems
• Industrial process control
• Instrumentation and control systems
• Medical imaging systems
• Vibration analysis

With its exceptional performance, the EVAL-AD7608SDZ from Analog Devices Inc. is an essential tool for engineers and developers working on high-precision, multi-channel data acquisition systems.
