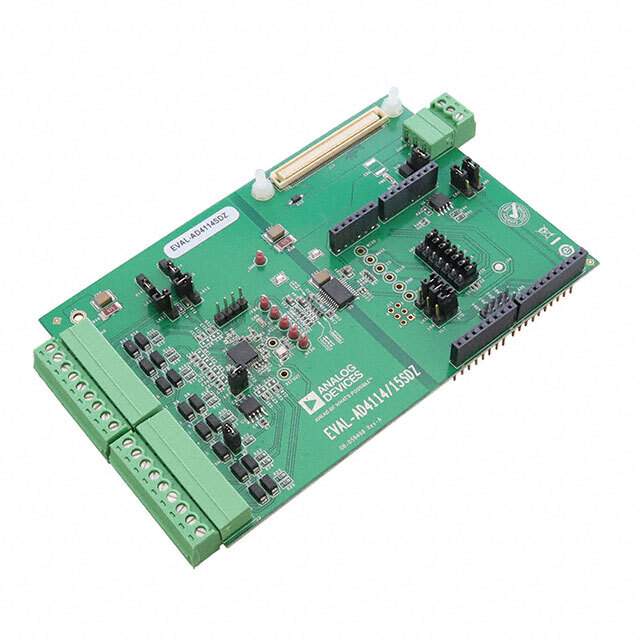

The EVAL-AD4114SDZ is a high-performance evaluation board offered by Analog Devices Inc., tailored for the AD4114, a low power, low noise, 24-bit sigma-delta (Σ-Δ) analog-to-digital converter (ADC). This evaluation board is specifically designed to help engineers and developers rapidly prototype and test the functionalities of the AD4114 ADC in their applications.

The AD4114 is an ADC with a flexible input multiplexer (mux) that can be configured for either 8 differential inputs or 15 single-ended/pseudo differential inputs. It is optimized for precision sensor measurement and industrial control systems that require high accuracy over wide temperature ranges. The ADC features an internal low drift voltage reference and a low noise, high input impedance buffer, making it suitable for direct connection to various sensors.

The EVAL-AD4114SDZ evaluation board comes with a variety of features to facilitate easy testing and development:

• On-board reference voltage for immediate out-of-the-box usage, eliminating the need for an external precision reference in initial stages of design.
• Access to all the ADC inputs/outputs through header connectors, allowing for quick connection to external circuitry.
• Compatibility with the System Demonstration Platform (SDP) and a connector for direct attachment to the SDP board, providing a USB interface to a PC for control and data analysis with the provided software.
• Easy-to-use evaluation software for Windows operating systems, enabling users to control the ADC and interpret the conversion results with minimal setup.

The EVAL-AD4114SDZ is an essential tool for engineers who need to validate the performance of the AD4114 ADC in their system designs. It simplifies the process of evaluating the intricate features of the ADC, saving valuable development time and ensuring a smooth path from prototyping to final product implementation.

For further technical specifications, detailed operation principles, and support documentation, users are encouraged to visit the Analog Devices Inc. website or contact their support team.
