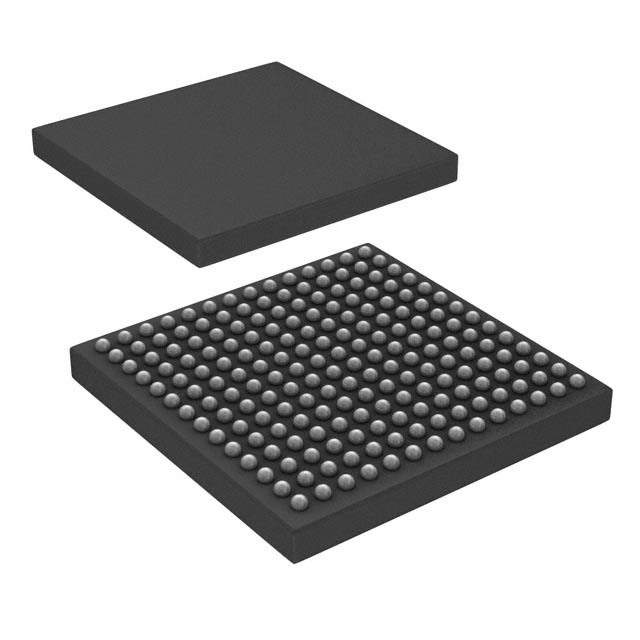

ADS54T04IZAYR Real Image
Same model may have multiple batches, images only for reference.

ADS54T04IZAYR

Part No ADS54T04IZAYR
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 12BIT 500MSPS 196NFBGA
Datasheet
ADS54T04IZAYR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Number of Bits 12
Sampling Rate 500M
Number of Inputs 2
Input Type Differential
Data Interface LVDS - Parallel
Configuration S/H-ADC
Number of A/D Converters 2
Reference Type Internal
Analog Supply Voltage 1.7 V to 1.9 V, 3.15 V to 3.45 V
Digital Supply Voltage 1.7 V to 1.9 V
Features Simultaneous Sampling
Temperature Range - Operating -40°C to 85°C
Case / Package 196-NFBGA (12x12)
Win Source Part Number 198770-ADS54T04IZAYR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ADS54T04IZAYR CAD Model

Description

ADS54T04IZAYR Dual-Channel ADC

The ADS54T04IZAYR is a dual-channel, 12-bit ADC offering high-performance conversion capabilities.

  • Features and Benefits:
    • Dual-channel synchronization
    • Data rate: Up to 550 MSPS
    • 12-bit resolution for accurate data processing
    • Low noise floor
  • Applications:
    • Digital beamforming
    • Phased array radar systems
    • Military communication systems
    • Electronic warfare
  • Additional Information:

    The ADS54T04IZAYR includes a range of integrated features that help optimize performance and simplify design processes in complex electronic systems, making it a reliable component for high-bandwidth data acquisition tasks.
