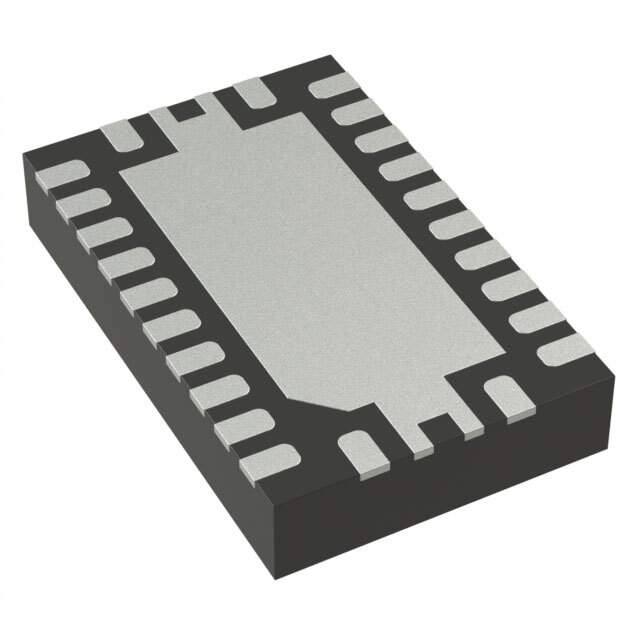

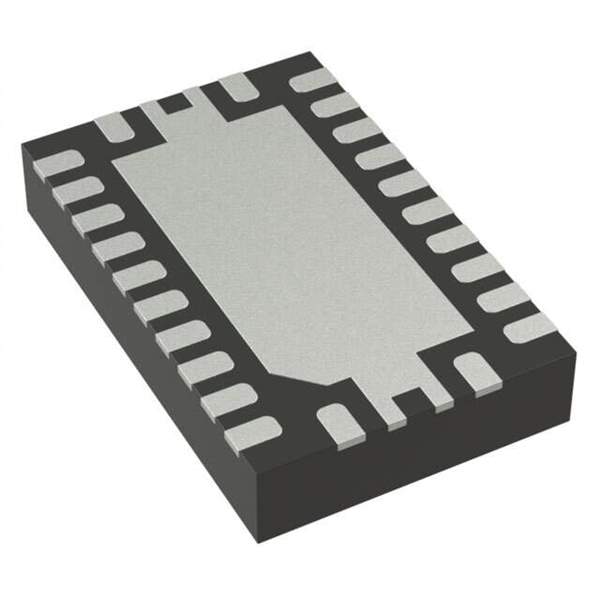

Product Overview: 74LVC8T245RHLRG4

The 74LVC8T245RHLRG4 is a high-performance, 8-bit dual-supply transceiver from Texas Instruments designed to address the needs of modern interfacing challenges in multi-voltage digital systems. This versatile component is part of the LVC (Low-Voltage CMOS) family, which is renowned for its low power consumption and high-speed operation. The device allows for bidirectional level shifting between different voltage domains, making it an essential component for systems that require the integration of peripherals or processors operating at varying voltage levels.

Key Features

• Voltage Level Translation: The 74LVC8T245RHLRG4 is capable of translating signals between two different voltage domains, ranging from 1.65V to 5.5V on the A side and from 1.2V to 5.5V on the B side, facilitating communication between devices that operate at different voltage levels.
• High-Speed Operation: With its low-voltage CMOS technology, the device supports high-speed data transfer with minimal propagation delays, making it suitable for high-performance applications.
• Direction Control: Direction control inputs (DIR) allow for the direction of data flow to be set, enabling either unidirectional or bidirectional data communication as required by the application.
• Output Enable (OE): The output enable input provides an additional layer of control by allowing the user to disable the outputs, placing them in a high-impedance state to prevent bus contention.
• Bus Hold: Bus hold circuitry on the data inputs eliminates the need for external pull-up or pull-down resistors, ensuring that the inputs remain at a valid logic level when open.
• Low Standby Power: The device has been optimized for low power dissipation in standby mode, which is crucial for battery-powered and energy-sensitive applications.
• ESD Protection: Enhanced Electrostatic Discharge (ESD) protection circuits safeguard the device against damage from static electricity, ensuring reliability and longevity in harsh environments.

Applications

The 74LVC8T245RHLRG4 is ideal for use in a broad range of applications that require logic level shifting or interfacing, including:

• Multi-voltage system communication
• Microcontroller or microprocessor interfacing
• Data bus transceiving and buffering
• Signal bridging in mixed-voltage systems
• Telecommunications and networking equipment

Its small form factor, combined with the robust QFN-20 package, makes the 74LVC8T245RHLRG4 a compact and reliable solution for designers looking to streamline multi-voltage interfaces in their digital systems.
