Same model may have multiple batches, images only for reference.

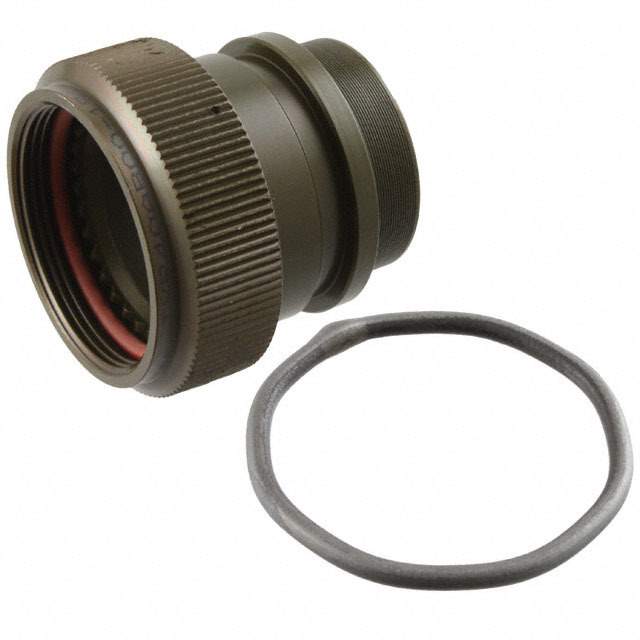

TXR40AB00-1814AI Real Image
Same model may have multiple batches, images only for reference.

TXR40AB00-1814AI

Part No TXR40AB00-1814AI
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN BACKSHELL ADPT SZ 19F OLIVE / Olive Drab Connector Backshell, Heat Shrink Adapter M28x1 19, F
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Backshells and Cable Clamps
Mfr TE Connectivity Aerospace, Defense and Marine
Series TXR
Package Bulk
Type Backshell, Heat Shrink Adapter
Diameter - Outside 1.398" (35.50mm)
Shell Size - Insert 19, F
Thread Size M28x1
Cable Exit 180°
Material Aluminum Alloy
Plating Cadmium
Shielding Shielded
Color Olive Drab
Features Tinel Lock
Ingress Protection Environment Resistant
Includes 4 pcs - 1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring
For Use With/Related Products MIL-DTL-38999 Series III, IV
Base Product Number TXR40AB00
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.8180
Other Names TXR40AB00-1814AI-ND,929031-000,A101207,TXR40AB001814AI
Standard Package 1
Win Source Part Number 1034113-TXR40AB00-1814AI
Ultra Librarian 3D Model Ultra Librarian TXR40AB00-1814AI CAD Model

Description

The TE Connectivity Aerospace, Defense and Marine TXR40AB00-1814AI backshell and cable clamp, which is perfect for all your connector needs.

  • Product Category: Circular Connectors
  • Series: TXR
  • Color: Olive Drab
  • Tinel Lock: Yes
  • Environment Resistant: Yes
  • Shielding: Yes
  • For Use With/Associated Products: MIL-DTL-38999 Series III, IV
  • Material: Aluminum Alloy
  • Plating: Cadmium
  • Package Quantity: 4 Pieces (1 Backshell, 1 Braid, 1 O-ring, 1 Tinel ring)
  • Cable Opening: Not Specified
  • Diameter Outside: 1.398 inches (35.50 mm)
  • Thread Size: M28x1
  • Cable Exit: 180 Degrees
