Same model may have multiple batches, images only for reference.

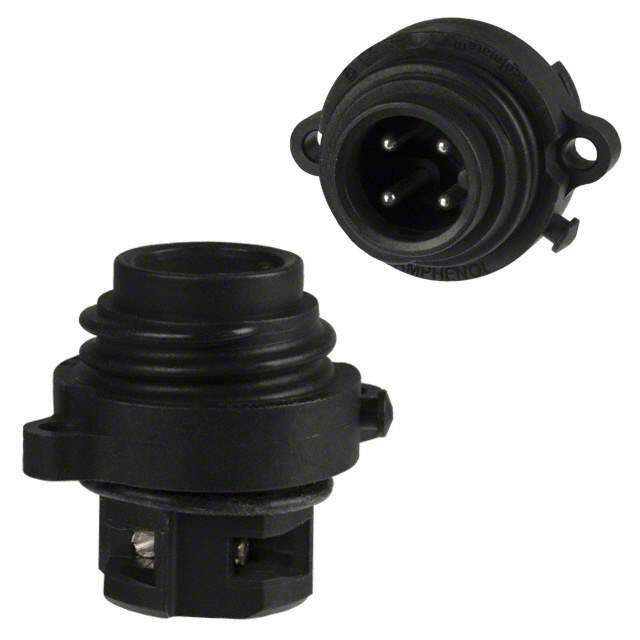

C016 20C003 100 12 Real Image
Same model may have multiple batches, images only for reference.

C016 20C003 100 12

Part No C016 20C003 100 12
Manufacturer Amphenol
Catalog Circular Connectors
Description Circular Receptacle 3 pos. Screw Terminal Male Thread Connection Cable Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CSA, UL, VDE
Body Material Nylon, Polyamide
Color Black
Connector Type Circular, Pin, Receptacle
Contact Gender Male
Contact Material Silver
Contact Plating Silver
Contact Resistance 5 mΩ
Current Rating 16 A
Depth 38 mm
Fastening Type Threaded
Gender Receptacle
Hole Diameter 22 mm
Housing Material Polyamide
Insulation Material Plastic
Insulation Resistance 10 MΩ
Lead Free Lead Free
Length 32 mm
Max Operating Temperature 100 °C
Min Operating Temperature -40 °C
Mount Free Hanging, Panel
Number of Contacts 4
Number of Pins 2
Number of Ports 1
Number of Positions 4
Orientation Straight
Packaging Box
Radiation Hardening No
Ratings Dust Tight, IP65, IP67, Water Resistant, Waterproof
REACH SVHC No SVHC
RoHS Compliant
Schedule B 8536694020, 8536694020
Termination Screw
Voltage Rating 400 V
Weight 20.400005 g
Win Source Part Number 1190206-C016 20C003 100 12
Categories Circular Connectors
Manufacturer Amphenol
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian C016 20C003 100 12 CAD Model

Description

This circular connector is a 4-position receptacle designed for free hanging or panel mounting.

  • Positions: 4
  • Mounting: Free Hanging/Panel Mount
  • Termination: Screw
  • Contact Material: Silver
  • Voltage Rating: 400V
  • Current Rating: 16A
  • Housing Material: Polyamide
  • Hole Diameter: 22mm
  • Approvals: CSA, UL, VDE
  • Temperature Range: -40 °C to 100 °C
  • Protection: Dust Tight, IP65, IP67, Water-Resistant, Waterproof
  • Compliance: Lead-Free, RoHS Compliant
