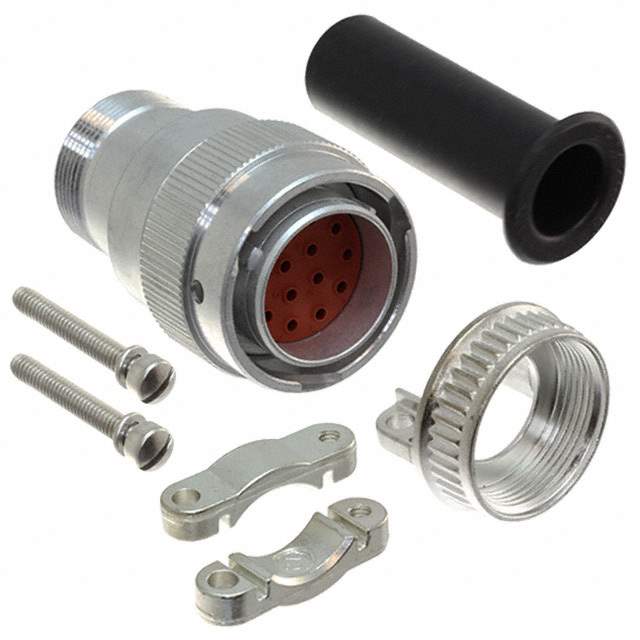

HD36-18-14PN-059 Real Image
Same model may have multiple batches, images only for reference.

HD36-18-14PN-059

Part No HD36-18-14PN-059
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN PLUG HSG MALE 14POS INLINE  /  14 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr TE Connectivity Deutsch Connectors
Series HD30
Package Bulk
Connector Type Plug Housing
Type For Male Pins
Number of Positions 14
Shell Size - Insert 18-14
Contact Type Crimp
Contact Size 16
Mounting Type Free Hanging (In-Line)
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Aluminum
Housing Color Silver
Ingress Protection IP67 - Dust Tight, Waterproof
Features Backshell, Cable Clamp, Coupling Nut
Shielding Unshielded
Note Contacts Not Included
Insert Material Polyetherimide (PEI)
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HD36
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Other Names 1734-1297
Standard Package 1
Win Source Part Number 1179472-HD36-18-14PN-059
Ultra Librarian 3D Model Ultra Librarian HD36-18-14PN-059 CAD Model

Description

The TE Connectivity Deutsch Connectors HD30 Plug Housing is a type of circular connector housing.

  • Number of Positions: 14
  • Contact Size: 16
  • Housing Color: Silver
  • Accessories: Backshell, Cable Clamp, Coupling Nut
  • Ingress Protection: IP67 - Dust Tight, Waterproof
  • Shielding: Unshielded
  • Operating Temperature Range: -55°C ~ 125°C
  • Package: Bulk of 1
  • REACH: Unaffected
