Same model may have multiple batches, images only for reference.

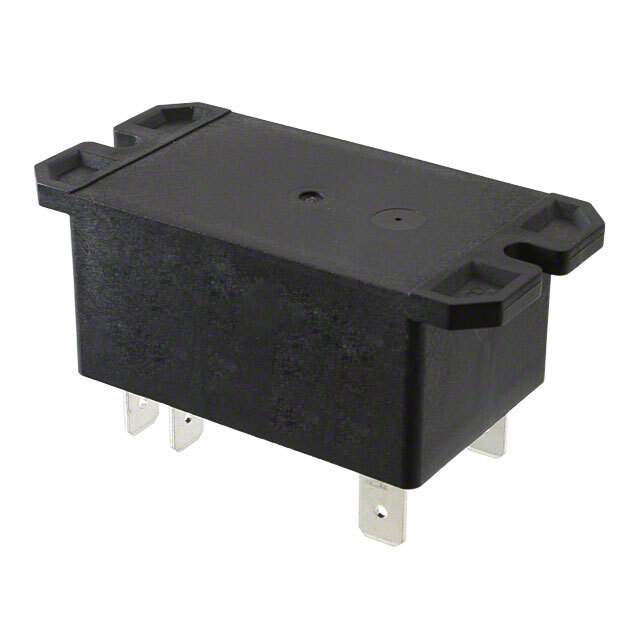

T92P7A22-120 Real Image
Same model may have multiple batches, images only for reference.

T92P7A22-120

Part No T92P7A22-120
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 30A 120V
Datasheet
T92P7A22-120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 33.3mA
Coil Voltage 120VAC
Contact Form DPST (2 Form A)
Contact Rating (Current) 30A
Switching Voltage 277VAC, 28VDC - Max
Turn On Voltage (Max) 96 VAC
Turn Off Voltage (Min) 12 VAC
Operate Time 15ms
Release Time 15ms
Features Insulation - Class F
Mounting Chassis Mount
Termination Style Quick Connect - 0.250" (6.3mm)
Coil Power 4 VA
Coil Resistance 950 Ohms
Temperature Range - Operating -55°C to 65°C
Win Source Part Number 047700-T92P7A22-120
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian T92P7A22-120 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays 047700-T92P7A22-120 is a general purpose relay with a DPST (2 Form A) contact form.

  • Coil Voltage: 120VAC
  • Contact Rating: 30A
  • Mounting Style: Chassis Mount
  • Termination Style: Quick Connect - 0.250" (6.3mm)
