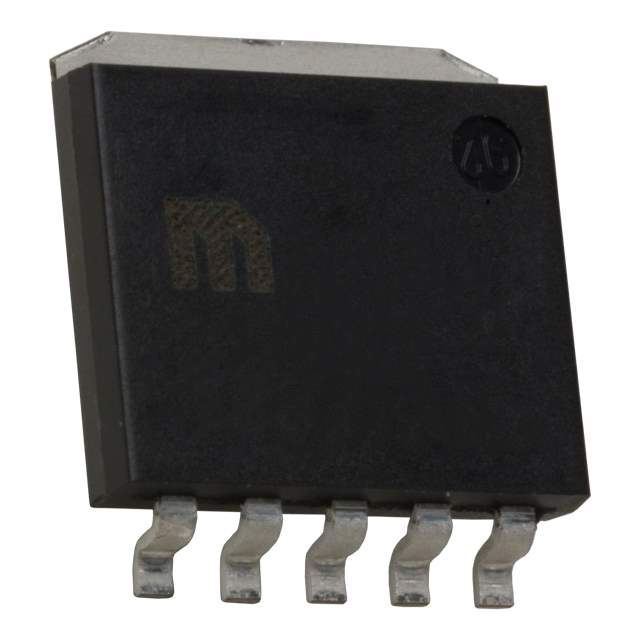

The MIC49200-1.2WR is a high-current, low-dropout (LDO) regulator from Micrel (now Microchip Technology). It is designed to provide a stable and accurate 1.2V output voltage at currents up to 2A. This regulator is known for its low dropout voltage, which allows it to operate with minimal voltage headroom, making it suitable for applications where input voltage is close to the desired output voltage.

Applications

• Post regulation for switching power supplies
• Core voltage regulation for microprocessors and DSPs
• Point-of-load regulation in distributed power systems
• Battery-powered systems
• High-efficiency linear power supplies

Features

• Low dropout voltage: Typically 250mV at 2A.
• High output current: Up to 2A.
• Stable with ceramic output capacitors: Allows for smaller and lower-cost designs.
• Adjustable output voltage: Using external resistors. Although this part is fixed at 1.2V, other versions in the series are adjustable.
• Overcurrent and overtemperature protection: Enhances system reliability.
• Enable pin: For on/off control.
• Reverse battery protection.

Benefits

• Improved efficiency: Low dropout voltage minimizes power dissipation.
• Stable and reliable power: Provides a clean and stable output voltage for sensitive loads.
• Simplified design: Requires minimal external components.
• Protection against faults: Overcurrent and overtemperature protection prevent damage to the regulator and the load.
• Longer battery life: High efficiency extends battery life in portable applications.

Technical Specifications:

• Output Voltage: 1.2V
• Output Current: 2A (Maximum)
• Dropout Voltage: 250mV @ 2A
• Input Voltage Range: Typically 2.5V to 5.5V (check datasheet for exact values)
• Operating Temperature Range: -40°C to +125°C
• Package Type: TO-252

The MIC49200-1.2WR is often used in applications requiring efficient and stable 1.2V power, such as powering the core voltage of microprocessors or providing a regulated voltage rail in battery-powered equipment. Its low dropout voltage and robust protection features make it a popular choice for demanding power management applications. Always refer to the official datasheet for detailed specifications and application guidelines.
