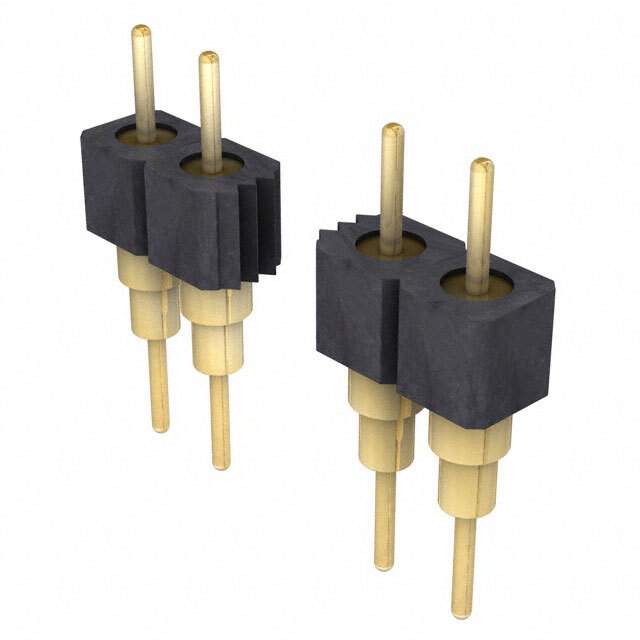

Same model may have multiple batches, images only for reference.

BBS-127-G-A

Get a Quote

Part No	BBS-127-G-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 27POS 2.54MM / Connector Header Through Hole 27 position 0.100" (2.54mm)
Datasheet	BBS-127-G-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	BBS
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	27
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.125" (3.18mm)
Contact Length - Post	0.125" (3.18mm)
Overall Contact Length	0.460" (11.68mm)
Insulation Height	0.211" (5.35mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20.0µin (0.51µm)
Contact Finish - Post	Nickel
Insulation Material	Polyester, Glass Filled
Temperature Range - Operating	-55°C ~ 125°C
Insulation Color	Black
Contact Finish Thickness - Post	50.0µin (1.27µm)
Base Product Number	BBS-127
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1004-27
Standard Package	1
Win Source Part Number	1049723-BBS-127-G-A
Ultra Librarian 3D Model	Ultra Librarian BBS-127-G-A CAD Model

Alternative Products

Description

This is a male pin header connector with a pitch-mating of 0.100 inches.

Pitch-Mating: 0.100 inches
Contact Finish-Mating: Gold with a thickness of 20.0µin (0.51µm)
Contact Finish-Post: Nickel with a thickness of 50.0µin (1.27µm)
Mounting Type: Through-hole
Temperature Range Operating: -55°C to 125°C
Insulation Material: Polyester, glass-filled
Insulation Color: Black
Shrouded: Unshrouded
Contact Shape: Circular
REACH: Unaffected by REACH
