Same model may have multiple batches, images only for reference.

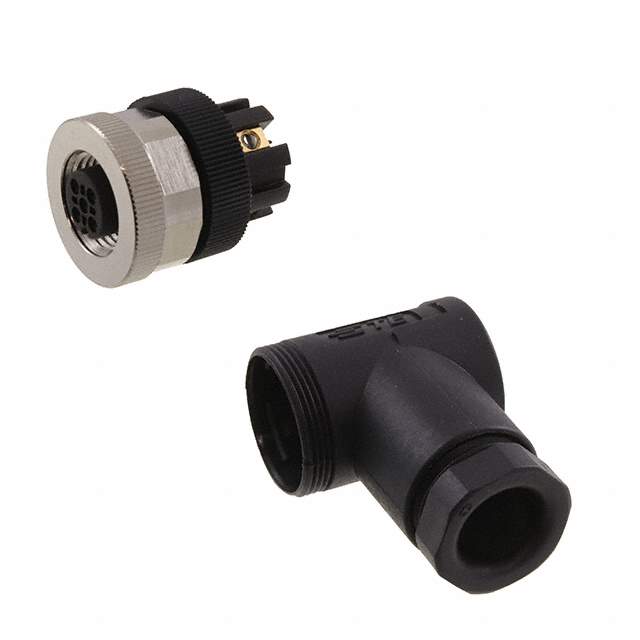

T4112002031-000 Real Image
Same model may have multiple batches, images only for reference.

T4112002031-000

Part No T4112002031-000
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN PLUG FMALE 3POS GOLD SCREW  /  3 Position Circular Connector Plug, Female Sockets Screw
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr TE Connectivity AMP Connectors
Series M12
Package Bulk
Connector Type Plug, Female Sockets
Number of Positions 3
Shell Size - Insert M12-3
Mounting Type Free Hanging (In-Line), Right Angle
Termination Screw
Fastening Type Threaded
Orientation A
Primary Material Metal
Shell Material Brass
Shell Finish Nickel
Contact Finish - Mating Gold
Color Black, Silver
Ingress Protection IP67 - Dust Tight, Waterproof
Features Backshell, Coupling Nut
Shielding Unshielded
Current Rating (Amps) 4A
Voltage Rating 250V
Cable Opening 0.236" ~ 0.315" (6.00mm ~ 8.00mm)
Temperature Range - Operating -40°C ~ 85°C
Backshell Material, Plating Polybutylene Terephthalate (PBT), Glass Filled
Contact Material Zinc Alloy
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Insert Material Polyamide (PA), Nylon
Applications Industrial
Base Product Number T41120
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4020
Other Names T4112002031-000-ND,-T4112002031-000-SI,A129284,2266-T4112002031-000
Standard Package 1
Win Source Part Number 1194482-T4112002031-000
Ultra Librarian 3D Model Ultra Librarian T4112002031-000 CAD Model

Description

The T4112002031-000 is a circular connector manufactured by TE Connectivity AMP Connectors.

  • Applications: Various industrial applications
  • Supply and Demand: Sufficient
  • Design: Compact
  • Reliability: High
  • Performance: High-performance connectivity
  • Current Rating: High
  • Termination Types: Various
