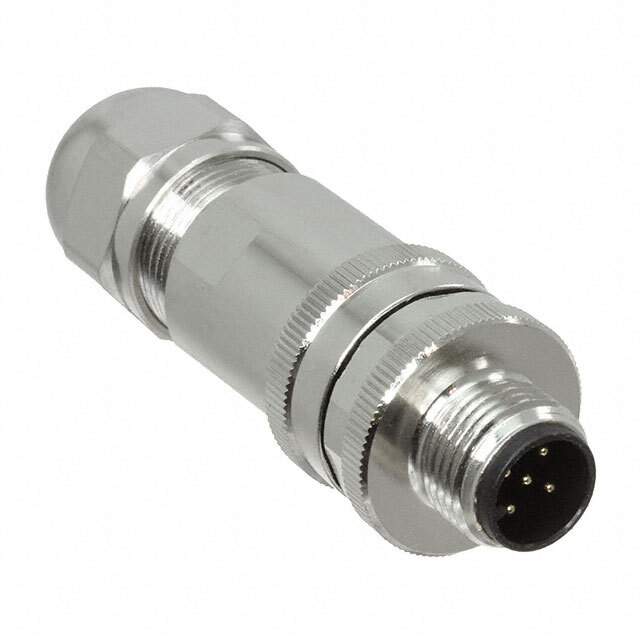

T4111011051-000 Real Image
Same model may have multiple batches, images only for reference.

T4111011051-000

Part No T4111011051-000
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN RCPT MALE 5POS GOLD SCREW  /  5 Position Circular Connector Receptacle, Male Pins Screw
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr TE Connectivity AMP Connectors
Series M12
Package Bulk
Connector Type Receptacle, Male Pins
Number of Positions 5
Shell Size - Insert M12-5
Mounting Type Free Hanging (In-Line)
Termination Screw
Fastening Type Threaded
Orientation A
Primary Material Metal
Shell Material Brass
Shell Finish Nickel
Contact Finish - Mating Gold
Color Silver
Ingress Protection IP67 - Dust Tight, Waterproof
Features Backshell
Shielding Shielded
Current Rating (Amps) 4A
Voltage Rating 60V
Cable Opening 0.157" ~ 0.236" (4.00mm ~ 6.00mm)
Temperature Range - Operating -40°C ~ 85°C
Backshell Material, Plating Brass, Nickel
Contact Material Zinc Alloy
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Insert Material Polyamide (PA), Nylon
Applications Industrial
Base Product Number T41110
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4020
Other Names A134488,-T4111011051-000-SI
Standard Package 1
Win Source Part Number 1189220-T4111011051-000
Ultra Librarian 3D Model Ultra Librarian T4111011051-000 CAD Model

Description

The TE Connectivity AMP Connectors T4111011051-000 is a circular connector that has 5 positions.

  • Applications: Industrial
  • Fastening Type: Threaded
  • Win Source Part Number: 1189220-T4111011051-000
  • Voltage Rating: 60V
  • Ingress Protection: IP67
  • Contact Material: Zinc Alloy
  • Contact Finish Mating: Gold
  • Contact Finish Mating Thickness: 3.00μin (0.076μm)
  • Cable Opening: 0.157" to 0.236" (4.00mm to 6.00mm)
  • Mounting Type: Free Hanging (In-Line)
  • Operating Temperature: -40°C to 85°C
