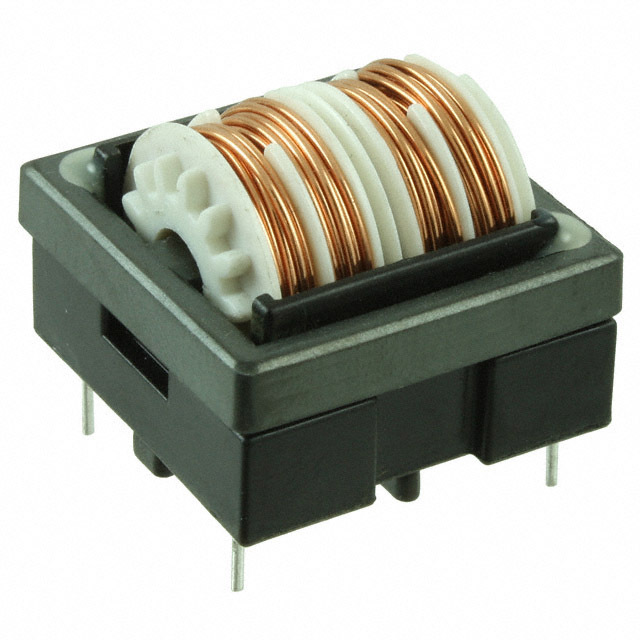

Same model may have multiple batches, images only for reference.
EV28-5.0-02-1M1 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

EV28-5.0-02-1M1

Part No EV28-5.0-02-1M1
Manufacturer TE Connectivity
Catalog Common Mode Chokes
Description CMC 1.1MH 5A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.1 mH @ 400 Hz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 27mOhm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 100°C
Mounting Type Through Hole
Size / Dimension 1.150" L x 0.827" W (29.20mm x 21.00mm)
Height (Max) 1.406" (35.70mm)
Case / Package Vertical, 4 PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1530552-EV28-5.0-02-1M1
Ultra Librarian 3D Model Ultra Librarian EV28-5.0-02-1M1 CAD Model
