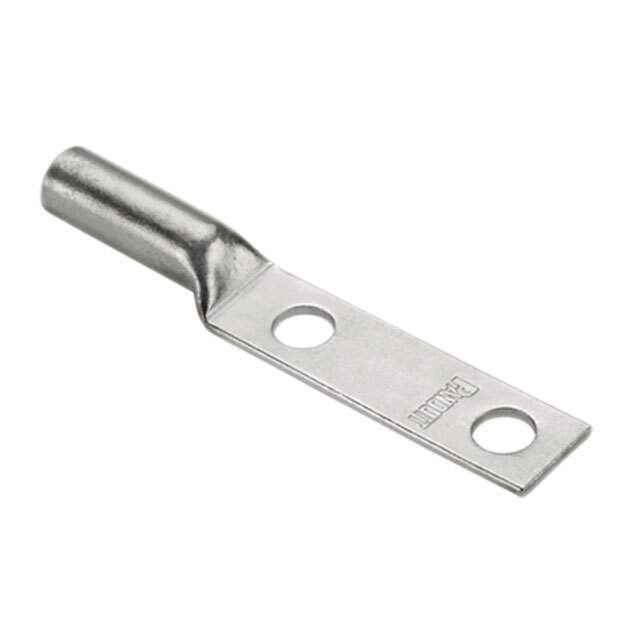

Same model may have multiple batches, images only for reference.

LCMC25-10-L

Get a Quote

Part No	LCMC25-10-L
Manufacturer	Panduit Corp
Catalog	Rectangular Connectors
Description	CONN TERM RECT RING 25MM #M10 / Terminal Connector Rectangular Ring, Tubular 25mm² M10 Stud
Datasheet	LCMC25-10-L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals - Rectangular Connectors
Mfr	Panduit Corp
Series	LCMC
Package	Bulk
Product Status	Obsolete
Terminal Type	Ring, Tubular
Stud/Tab Size	M10 Stud
Terminal Style	Two Stud Holes
Tab Thickness	0.059" (1.50mm)
Length - Overall	3.669" (93.19mm)
Width - Outer Edges	0.610" (15.49mm)
Mounting Type	Free Hanging (In-Line)
Termination	Crimp, Barrel
Wire Gauge	25mm²
Insulation	Non-Insulated
Contact Finish	Tin
Contact Material	Copper
Diameter - Barrel ID	0.272" (6.91mm)
Diameter - Barrel OD	0.346" (8.79mm)
Diameter - Ring ID	0.433" (11.00mm)
Base Product Number	LCMC
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Other Names	07498361765
Standard Package	1
Win Source Part Number	1052581-LCMC25-10-L
Ultra Librarian 3D Model	Ultra Librarian LCMC25-10-L CAD Model

Alternative Products

Description

The Panduit Corp LCMC25-10-L is a rectangular connector terminal used for crimping and barrel termination.

Contact Finish: Tin
Contact Material: Copper
Terminal Style: Two stud holes
Stud/Tab Size: M10 Stud
Wire Gauge: 25mm²
Terminal Type: Ring/Tubular
Diameter: 0.433 inches (11.00mm)
Tab Thickness: 0.059 inches (1.50mm)
Insulation: Non-Insulated
Mounting Type: Free Hanging (In-Line)
Series: LCMC
Width: 0.610 inches (15.49mm)
Length: 3.669 inches (93.19mm)
Supply: Bulk
Alternative Parts: LCMA25-10-C, LCMA16-10-C, and LCMA25-6-C
