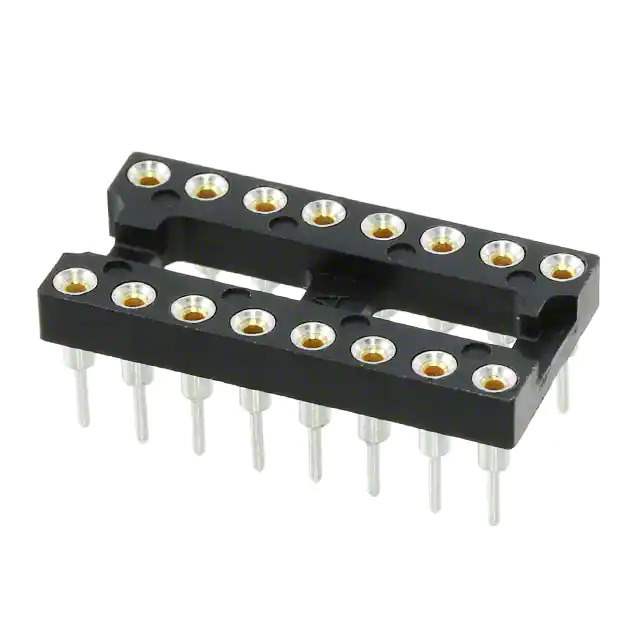

816-AG11D-ESL-LF Real Image
Same model may have multiple batches, images only for reference.

816-AG11D-ESL-LF

Part No 816-AG11D-ESL-LF
Manufacturer TE Connectivity
Catalog Sockets for ICs, Transistors
Description CONN IC DIP SOCKET 16POS GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Sockets for ICs, Transistors - IC Sockets
Mfr TE Connectivity
Series 800
Package Tube
Product Status Obsolete
Type DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) 16 (2 x 8)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Contact Material - Mating Beryllium Copper
Mounting Type Through Hole
Features Open Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Gold
Contact Finish Thickness - Post Flash
Contact Material - Post Copper
Housing Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Temperature Range - Operating -55°C ~ 105°C
Termination Post Length 0.125" (3.18mm)
Material Flammability Rating UL94 V-0
Contact Resistance 10mOhm
Base Product Number 816
Standard Package 30 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848738-816-AG11D-ESL-LF
Ultra Librarian 3D Model Ultra Librarian 816-AG11D-ESL-LF CAD Model

Description

The 789916 is an IC socket from the 800 series by TE Connectivity. 789916 is manufactured by TE Connectivity.

  • Socket Type: DIP
  • Number of Positions: 16
  • Pitch: 0.100" (2.54mm)
  • Row Spacing: 0.3" (7.62mm)
  • Termination: Solder
  • Mounting Type: Through Hole
  • Contact Material: Beryllium Copper
  • Contact Finish: Gold (Mating), Copper (Post)
  • Housing Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
  • Flammability Rating: UL94 V-0
  • Features: Open Frame
  • Contact Resistance: 10mOhm
  • Operating Temperature: -55°C ~ 105°C
  • Termination Post Length: 0.125" (3.18mm)
  • Obsolete: Yes
