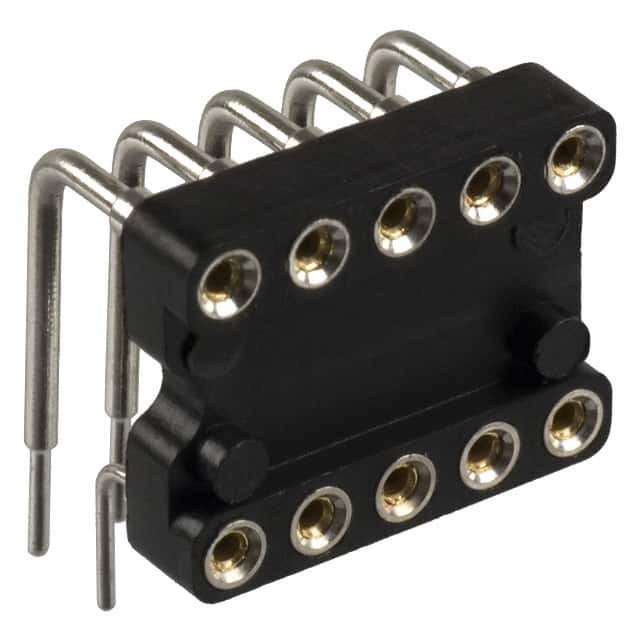

Same model may have multiple batches, images only for reference.

299-93-310-11-001000

Name: 299-93-310-11-001000
Brand: Mill-Max Manufacturing Corp.
SKU: 1041656
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	299-93-310-11-001000
Manufacturer	Mill-Max Manufacturing Corp.
Catalog	Circular Connectors - Housings
Description	CONN IC DIP SOCKET 10POS GOLD / 10 (2 x 5) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole, Right Angle, Horizontal
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Sockets for ICs, Transistors
Mfr	Mill-Max Manufacturing Corp.
Series	299
Package	Tube
Type	DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid)	10 (2 x 5)
Pitch - Mating	0.100" (2.54mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Material - Mating	Beryllium Copper
Mounting Type	Through Hole, Right Angle, Horizontal
Features	Closed Frame
Termination	Solder
Pitch - Post	0.100" (2.54mm)
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Post	200.0µin (5.08µm)
Contact Material - Post	Brass Alloy
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Temperature Range - Operating	-55°C ~ 125°C
Termination Post Length	0.126" (3.20mm)
Current Rating (Amps)	3 A
Base Product Number	299-93
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	299-93-310-11-001,2999331011001000,ED58433
Standard Package	40
Win Source Part Number	1041656-299-93-310-11-001000
Ultra Librarian 3D Model	Ultra Librarian 299-93-310-11-001000 CAD Model

Alternative Products

Description

The Mill-Max Manufacturing Corp. 299-93-310-11-001000 is a 10 (2 x 5) DIP socket for ICs and transistors with a 0.3" (7.62mm) row spacing.

Row Spacing: 0.3" (7.62mm)
Frame: Closed
Termination: Soldering
Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Current Rating: 3 A
Operating Temperatures: -55°C to 125°C
MSL Level: Unlimited
REACH: Unaffected
