1-2199299-5 TE Connectivity
Same model may have multiple batches, images only for reference.

1-2199299-5

Part No 1-2199299-5
Manufacturer TE Connectivity
Catalog Sockets for ICs, Transistors

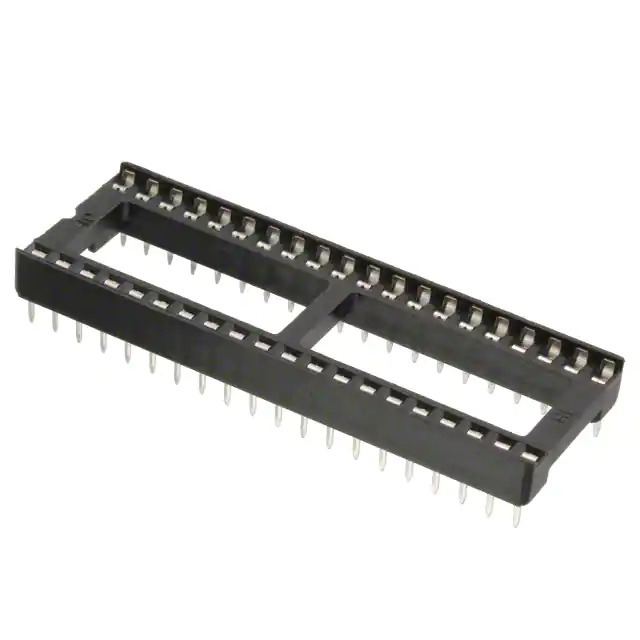

Description 40P,DIP SKT,600 CL,LDR,PB FREE / 40 (2 x 20) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Tin Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Sockets for ICs, Transistors - IC Sockets
Mfr TE Connectivity AMP Connectors
Series Diplomate DL
Package Tube
Product Status Active
Type DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) 40 (2 x 20)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Contact Material - Mating Phosphor Bronze
Mounting Type Through Hole
Features Open Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Tin
Contact Finish Thickness - Post 60.0µin (1.52µm)
Contact Material - Post Nickel
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating -40°C ~ 105°C
Termination Post Length 0.118" (3.00mm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1 A
Contact Resistance 20mOhm
Base Product Number 2199299
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1363450-1-2199299-5
Ultra Librarian 3D Model Ultra Librarian 1-2199299-5 CAD Model

Description

The Diplomate DL series is a tube package IC socket designed for through-hole mounting manufactured by TE Connectivity AMP Connectors.

  • Mounting Type: Through-Hole
  • Design: Open Frame
  • Termination: Solder
  • Number of Positions: 40
  • Arrangement: 2 x 20
  • Pitch: 0.100" (2.54mm)
  • Row Spacing: 0.6" (15.24mm)
  • Current Rating: 1 A
  • Contact Finish: Tin
  • Contact Finish Thickness: 60.0µin (1.52µm)
  • Housing Material: Polybutylene Terephthalate (PBT) with Glass Filling
  • Flammability: High
