Same model may have multiple batches, images only for reference.

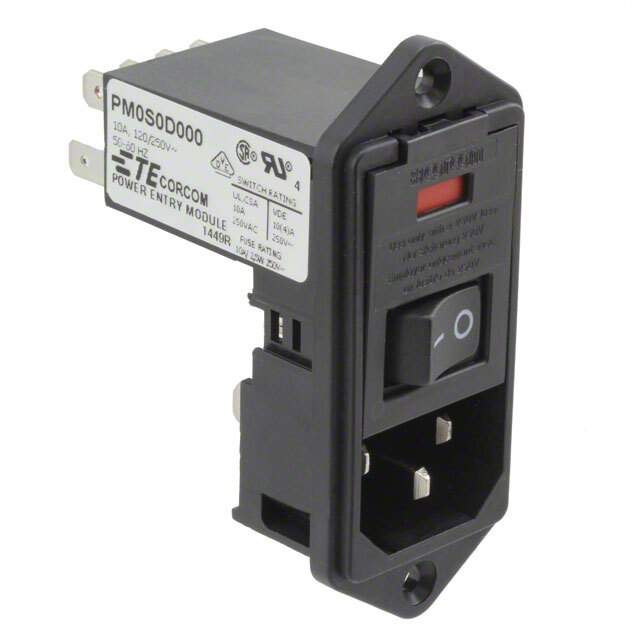

7-6609959-0 Real Image
Same model may have multiple batches, images only for reference.

7-6609959-0

Part No 7-6609959-0
Manufacturer TE Connectivity
Catalog Power Entry Connectors - Inlets, Outlets, Modules
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Power Entry Connectors - Inlets, Outlets, Modules
Mfr TE Connectivity Corcom Filters
Series P, Chameleon, Corcom
Package Bulk
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades - Module
Current - IEC 10A
Voltage - IEC 120VAC
Current - UL 10A
Voltage - UL 250VAC
Filter Type Unfiltered - Commercial
Accomodates a Fuse Yes (Fuse Not Included)
Number of Positions 3
Mounting Type Panel Mount, Flange
Termination Quick Connect - 0.187" (4.7mm)
Switch Features Switch On-Off
Fuse Holder, Drawer Fuse Holder, Twin Fused
Panel Cutout Dimensions Rectangular - 26.92mm x 54.10mm
Approval Agency CSA, UL, VDE
Base Product Number 6609959
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 1315234-7-6609959-0
Ultra Librarian 3D Model Ultra Librarian 7-6609959-0 CAD Model

Description

The TE Connectivity Corcom Filters electronic component with Win Source Part Number 1315234-7-6609959-0 is a power entry connector with 3 positions and a current - IEC of 10A.

  • Positions: 3
  • Current - IEC: 10A
  • Voltage - IEC: 120VAC
  • Voltage - UL: 250VAC
  • Connector Type: Receptacle with male blades - module
  • Termination: Quick connect - 0.187" (4.7mm)
  • REACH: Compliant
  • HTSUS: 8536.30.8000
