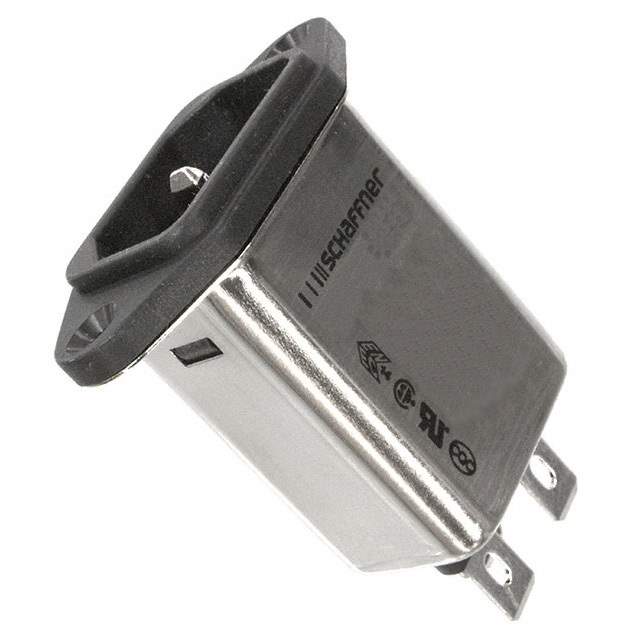

FN9222R-15-06 Real Image
Same model may have multiple batches, images only for reference.

FN9222R-15-06

Part No FN9222R-15-06
Manufacturer Schaffner EMC Inc.
Catalog Barrel - Power Connectors
Description PWR ENT RCPT IEC320-C14 PANEL QC / Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
Datasheet
FN9222R-15-06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Power Entry Connectors - Inlets, Outlets, Modules
Mfr Schaffner EMC Inc.
Series FN 9222
Package Tray
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades
Current - UL 15A
Voltage - UL 250VAC
Filter Type Filtered (EMI, RFI) - Commercial
Accomodates a Fuse No
Number of Positions 3
Mounting Type Panel Mount, Flange
Termination Quick Connect - 0.250" (6.3mm)
Features Bleed Resistor, Front or Rear Side Mount
Panel Cutout Dimensions Rectangular - 28.50mm x 21.50mm
Material Flammability Rating UL94 V-2
Ingress Protection IP40
Approval Agency CQC, CSA, ENEC, UL
Base Product Number FN9222
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Other Names FN9222R -15 -06,298-295,803779,817-1449,FN9222R1506
Standard Package 120
Win Source Part Number 1183518-FN9222R-15-06
Ultra Librarian 3D Model Ultra Librarian FN9222R-15-06 CAD Model

Description

The FN9222R-15-06 is a power entry connector designed for use in power supply applications.

  • Connector Type: Receptacle
  • Blade Type: Male
  • Termination: Quick connect
  • Termination Size: 0.250" (6.3mm)
  • Current Rating: 15A
  • Voltage Rating: 250VAC
  • Ingress Protection: IP40
  • Features: Bleed resistor
  • Mounting: Front or rear side
  • Panel Cutout: 28.50mm x 21.50mm
  • Material Flammability Rating: UL94 V-2
  • Filtering: EMI, RFI - commercial
  • Approvals: CQC, CSA, ENEC, and UL
