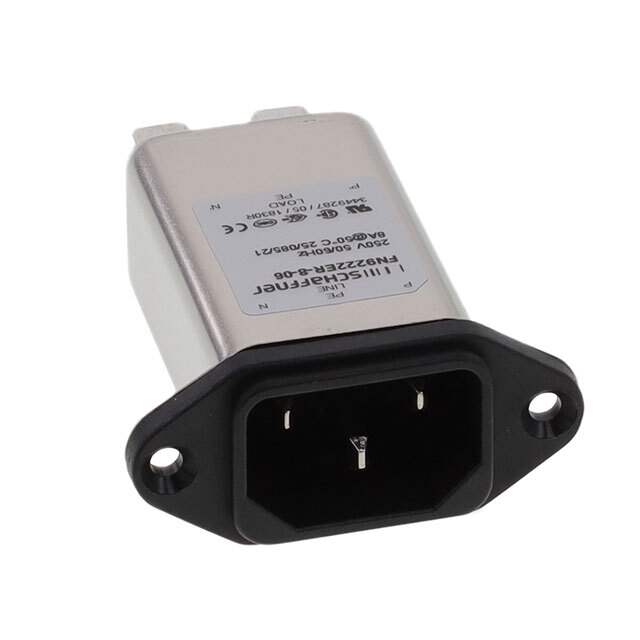

FN9222ER-8-06 Real Image
Same model may have multiple batches, images only for reference.

FN9222ER-8-06

Part No FN9222ER-8-06
Manufacturer Schaffner EMC Inc.
Catalog Power Entry Connectors - Inlets, Outlets, Modules
Description PWR ENT RCPT IEC320-C14 PANEL QC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Schaffner EMC Inc.
Packaging Bulk
Status Active
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades
Nominal current IN - UL 8A
Voltage - UL 250VAC
Filter Type Filtered (EMI, RFI) - Commercial
Fuse No
Number of Positions 3
Mounting Panel Mount, Flange
Termination Quick Connect - 0.250" (6.3mm)
Switch Features Bleed Resistor, Earth Line Choke, Front or Rear Side Mount
Panel Cutout Dimensions Rectangular - 28.50mm x 21.50mm
Material Flammability Rating UL94 V-2
Ingress Protection IP40
Approvals CQC, CSA, ENEC, UL
Win Source Part Number 102507-FN9222ER-8-06
Popularity Medium
Supply and Demand Status Balance
Quantity per package 120
Ultra Librarian 3D Model Ultra Librarian FN9222ER-8-06 CAD Model

Description

The Schaffner EMC Inc. FN9222ER-8-06 is a filtered (EMI, RFI) commercial connector type with a receptacle and male blades. It has a quick connect termination of 0.250" (6.3mm) and is designed for panel mount flange. The connector type is IEC 320-C14 and has a voltage rating of 250VAC. It has an ingress protection of IP40 and a material flammability rating of UL94 V-2. The connector is approved by CQC, CSA, ENEC, and UL.

  • Nominal Current IN - UL: 8A
  • Package: 120

The Schaffner EMC Inc.
