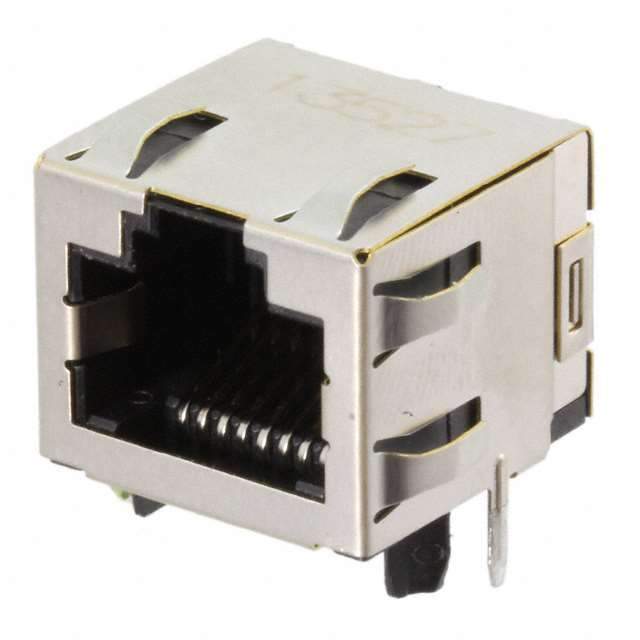

1-406541-9 Real Image
Same model may have multiple batches, images only for reference.

1-406541-9

Part No 1-406541-9
Manufacturer TE Connectivity
Catalog Modular Connectors
Description CONN MOD JACK 8P8C R/A SHIELDED / Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 1
Number of Rows 1
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Shielded, EMI Finger
Ratings Cat5
Features Board Guide
LED Color Does Not Contain LED
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Housing Material Thermoplastic
Temperature Range - Operating -40°C ~ 85°C
Base Product Number 406541
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A119100,2266-1-406541-9,-1-406541-9-SI
Standard Package 441
Win Source Part Number 1333894-1-406541-9
Ultra Librarian 3D Model Ultra Librarian 1-406541-9 CAD Model

Description

The TE Connectivity AMP Connectors 1333894-1-406541-9 is a modular connector jack component with a board guide feature.

  • Connector Type: Jack
  • Orientation: 90° angle (right)
  • Mounting: Through-hole
  • Shielding: Shielding feature and EMI finger
  • Housing Material: Thermoplastic
  • Number of Positions/Contacts: 8p8c (RJ45, Ethernet)
  • Temperature Range: -40°C ~ 85°C
  • Rated For: Cat5
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0µin (1.27µm)
