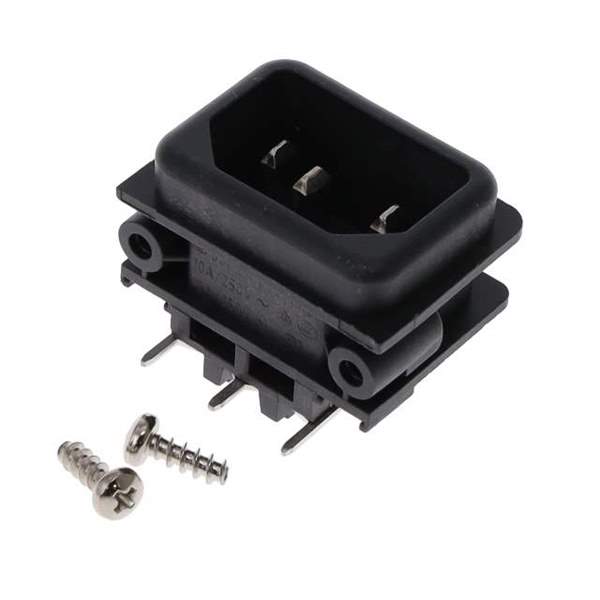

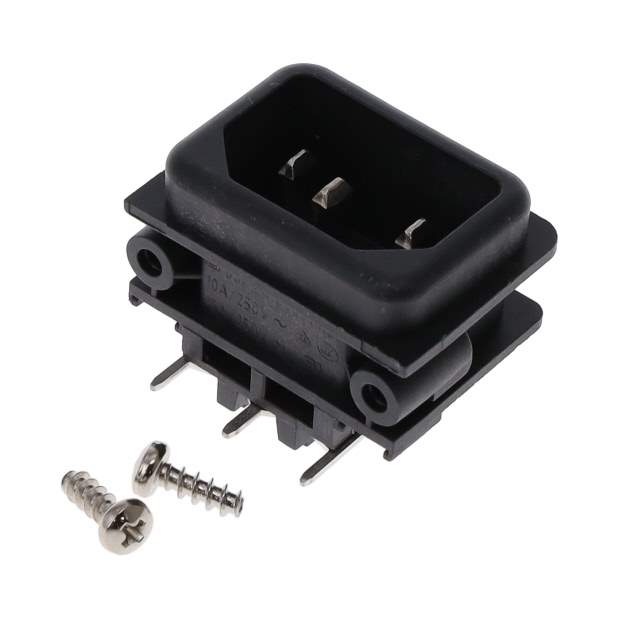

GSF1.0002.01 Real Image
Same model may have multiple batches, images only for reference.

GSF1.0002.01

Part No GSF1.0002.01
Manufacturer Schurter Inc.
Catalog Power Entry Connectors - Inlets, Outlets, Modules
Description PWR ENT RCPT IEC320-C14 PNL SLDR / Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
Datasheet
GSF1.0002.01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Power Entry Connectors - Inlets, Outlets, Modules
Mfr SCHURTER Inc.
Series GSF1
Package Bulk
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades
Current - IEC 10A
Voltage - IEC 250VAC
Current - UL 10A
Voltage - UL 250VAC
Filter Type Unfiltered - Commercial
Accomodates a Fuse No
Number of Positions 3
Mounting Type Panel Mount, Flange; Through Hole, Right Angle
Termination Solder
Features Mounting Hardware
Panel Cutout Dimensions Rectangular - 30.30mm x 22.30mm
Panel Thickness 0.236" (6.00mm)
Material Flammability Rating UL94 V-0
Ingress Protection IP40
Approval Agency CCC, CSA, ENEC, UL
Base Product Number GSF1.0002
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 486-4494,GSF1.0002.01-ND
Standard Package 50
Win Source Part Number 1106882-GSF1.0002.01
Ultra Librarian 3D Model Ultra Librarian GSF1.0002.01 CAD Model

Description

This is a non-compliant power entry connector from the GSF1 series by SCHURTER Inc.

  • Connector Type: Receptacle with Male Blades
  • Termination: Solder
  • Connector Style: IEC 320-C14
  • Filter Type: Unfiltered - Commercial
  • Current Rating: 10A for both IEC and UL
  • Voltage Rating: 250VAC
  • Package: Bulk
  • Mounting Type: Panel Mount, Flange; Through Hole, Right Angle
  • Panel Cutout Dimensions: Rectangular - 30.30mm x 22.30mm
  • Panel Thickness: 0.236" (6.00mm)
  • Ingress Protection: IP40
  • Material Flammability Rating: UL94 V-0
  • Mounting Hardware: Included
  • Standard Package: 50
