Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity Corcom Filters
Series L, Corcom
Packaging Bulk
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades - Module
Current - IEC 6A
Voltage - IEC 120/250VAC
Current - UL 6A
Voltage - UL 250VAC
Filter Type Filtered (EMI, RFI) - Commercial
Fuse Yes
Number of Positions 3
Mounting Panel Mount, Flange
Termination Quick Connect - 0.110" (2.8mm)
Features Voltage Selector
Fuse Holder, Drawer Fuse Holder, Twin Fused
Panel Cutout Dimensions Rectangular - 28.50mm x 55.91mm
Approvals CSA, SEMKO, SEV, UL, VDE
Win Source Part Number 771611-6EDL4
Popularity Medium
Supply and Demand Status Limited
Family Name 6EDL4
Introduction Date April 03, 2003
ECCN EAR99
Country of Origin Mexico
Halogen Free Not Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 6EDL4 CAD Model

Description

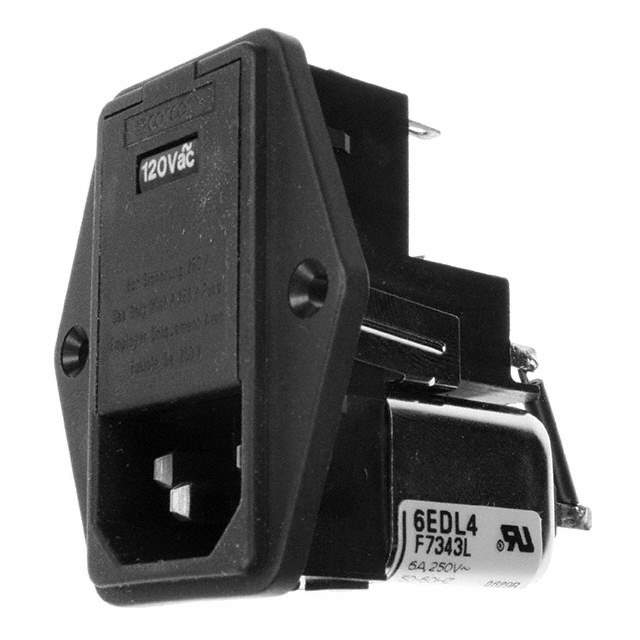

The TE Connectivity Corcom Filters 6EDL4 is a filtered connector designed for use in commercial applications.

  • Features: Voltage selector
  • Maximum Current: 6A
  • Maximum Voltage: 250VAC
  • Series: 6EDL4
  • Blades: Male
  • Package: Bulk
  • Connector Style: IEC 320-C14
  • Approvals: CSA, SEMKO, SEV, UL, VDE
  • Fuse Holder: Twin-fused
  • Mounting: Panel
  • Cutout: 28.50mm x 55.91mm
  • Panel Thickness: Not specified
  • Family Name: 6EDL4
  • Introduction Date: April 03, 2003
  • Estimated EOL Date: 2025
  • ECCN: EAR99
  • Country of Origin: Mexico
  • Supply and Demand Status: Limited
