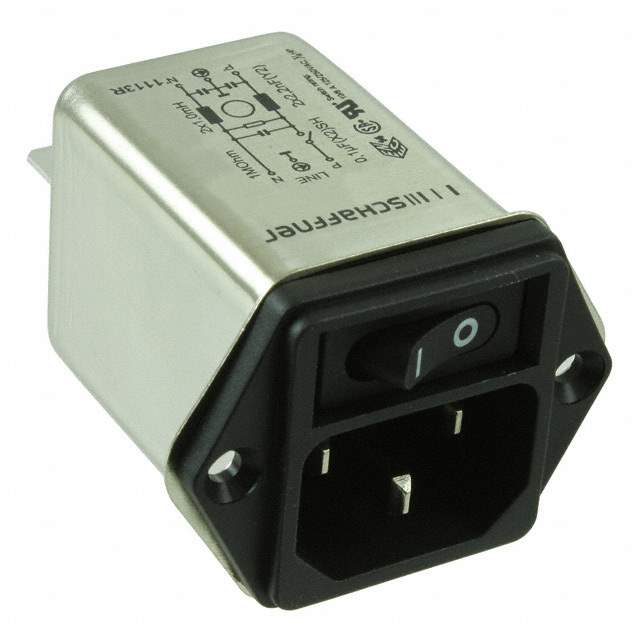

FN9263-3-06 Real Image
Same model may have multiple batches, images only for reference.

FN9263-3-06

Part No FN9263-3-06
Manufacturer Schaffner EMC Inc.
Catalog Power Entry Connectors - Inlets, Outlets, Modules
Description PWR ENT MOD RCPT IEC320-C14 PNL / Power Entry Module EMI Filtered M 3 POS 250VAC 3A Switch ST 1 Port
Datasheet
FN9263-3-06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Schaffner EMC Inc.
Series FN 9263
Packaging Bulk
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades - Module
Current - UL 3A
Voltage - UL 250VAC
Filter Type Filtered (EMI, RFI) - Commercial
Fuse No
Number of Positions 3
Mounting Panel Mount, Flange
Termination Quick Connect - 0.250" (6.3mm)
Switch Features Switch On-Off
Features Front or Rear Side Mount
Panel Cutout Dimensions Rectangular - 29.20mm x 33.20mm
Material Flammability Rating UL94 V-2
Ingress Protection IP40
Approvals CQC, CSA, ENEC, UL
Win Source Part Number 774649-FN9263-3-06
Popularity Medium
Supply and Demand Status Balance
Quantity per package 60
Family Name FN9263
Introduction Date May 19, 2008
ECCN EAR99
Country of Origin Thailand
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian FN9263-3-06 CAD Model

Description

The Schaffner FN9263-3-06 is a high-quality filtered connector that is designed to offer excellent performance and reliability. Schaffner EMC Inc.

  • Supply and Demand Status: Balanced
  • Termination: Receptacle with male blades and module
  • Connector Type: IEC 320-C14
  • Voltage Rating: 250VAC
  • Current Rating: 3A
