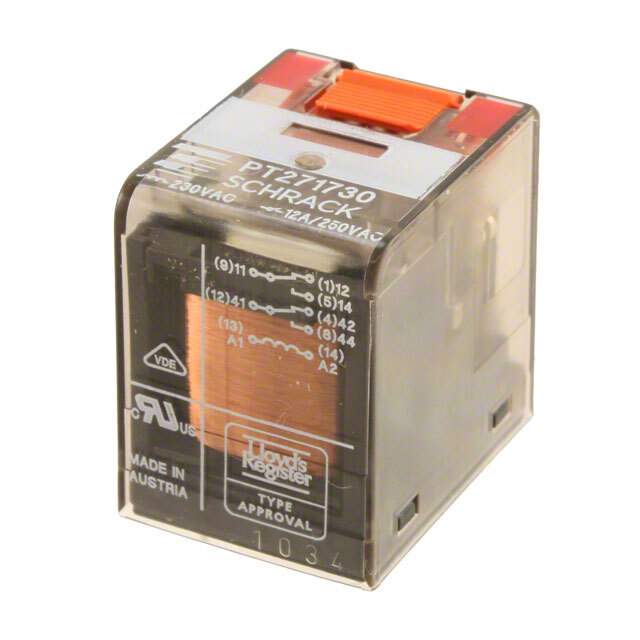

7-1419111-1 Real Image
Same model may have multiple batches, images only for reference.

7-1419111-1

Part No 7-1419111-1
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description Electromechanical Relay 24VDC 777Ohm 20A 3PDT (( 28mm 22.5mm 30mm)) THT Industrial Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Coil Current 30.89 mA
Coil Power 741 mW
Coil Resistance 777 Ω
Coil Type Non-Latching
Coil Voltage (DC) 24 V
Contact Current Rating 10 A
Contact Material Silver
Contact Voltage Rating (AC) 240 V
Depth 22.5 mm
Dropout Voltage 2.4 V
ELV Compliant
Height 29.972 mm
Length 28 mm
Max Current Rating 20 A
Maximum Operating Temperature 70 °C
Max Voltage Rating (AC) 400 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Pins 11
Operate Time 15 ms
Packaging Bulk
Radiation Hardening No
REACH SVHC Unknown
Relay Type General Purpose
Release Time 10 ms
RoHS Compliant
Termination PC Pin, PCB
Throw Configuration 3PDT
Voltage Rating (AC) 400 V
Weight 30 g
Width 22.5 mm
Win Source Part Number 1085422-7-1419111-1
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 7-1419111-1 CAD Model

Description

TE Connectivity 1085422-7-1419111-1 is a general-purpose non-latching signal relay with a coil voltage of 24V DC.

  • Coil Voltage: 24V DC
  • Coil Resistance: 777 Ω
  • Coil Current: 30.89 mA
  • Contact Current Rating: 10A
  • Maximum Current Rating: 20A
  • Drop-Out Voltage: 2.4V
  • Contact Voltage Rating: 240V AC
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 70 °C
  • Minimum Operating Temperature: -40 °C
  • Mounting: Through-Hole
  • Throw Configuration: 3PDT
